Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (Hybrid)
>>
Function Diagnosis
>>
Electric Ignition System
>>
System Diagram
System Diagram

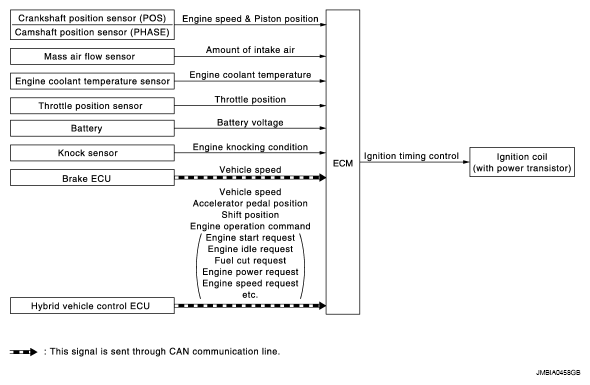

Fig 1: Electric Ignition System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
