Procedure B
- CHECK COOLING FAN MOTORS CIRCUIT
- Turn ignition switch OFF.

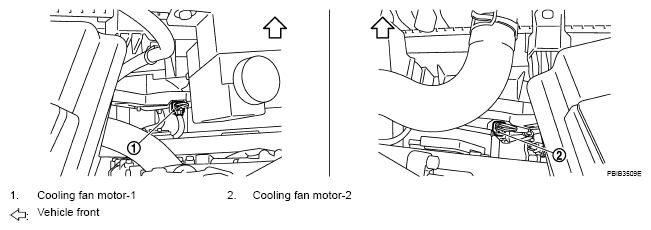

- Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.
- Disconnect all IPDM E/R harness connectors.
- Check harness continuity between the following; cooling fan motor-1 terminal 1 and IPDM E/R terminal 8, cooling fan motor-1 terminal 4 and IPDM E/R terminal 9, IPDM E/R terminal 14 and ground, Refer to WIRING DIAGRAM
.
Continuity should exist .
- Also check harness connector for short to ground or short to power.
- Check harness continuity between the following; cooling fan motor-2 terminal 1 and IPDM E/R terminal 13, cooling fan motor-2 terminal 4 and IPDM E/R terminal 12, Refer to WIRING DIAGRAM
.
Continuity should exist .
- Also check harness for short to ground and short to power.
OK or NG
OK: GO TO 3.
NG: GO TO 2.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness for open or short between cooling fan motors-1, 2 and IPDM E/R
- Harness for open or short between IPDM E/R and ground
: Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK COOLING FAN MOTORS
Refer to "COMPONENT INSPECTION ".
OK or NG
OK: GO TO 4.
NG: Replace malfunctioning cooling fan motors.
- CHECK INTERMITTENT INCIDENT
Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
OK or NG
OK: Replace IPDM E/R. Refer to "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) ".
NG: Repair or replace harness or connectors.
