Removal and Installation
>>
EVAP Canister
EVAP Canister
Tighten EVAP canister as shown in the figure.

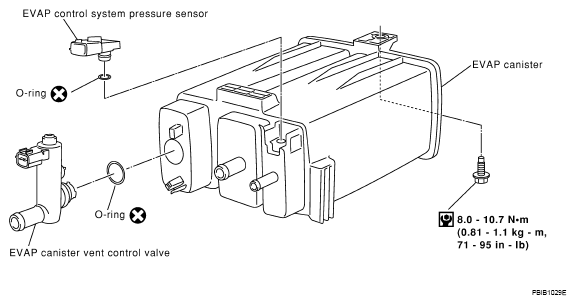

Fig 1: EVAP Canister Vent Control Valve With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
