Frontier LE, 4D Pickup, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System - Introduction (VQ)
>>
Trouble Diagnosis
>>
Symptom Matrix Chart
>>
System - Basic Engine Control System
System - Basic Engine Control System

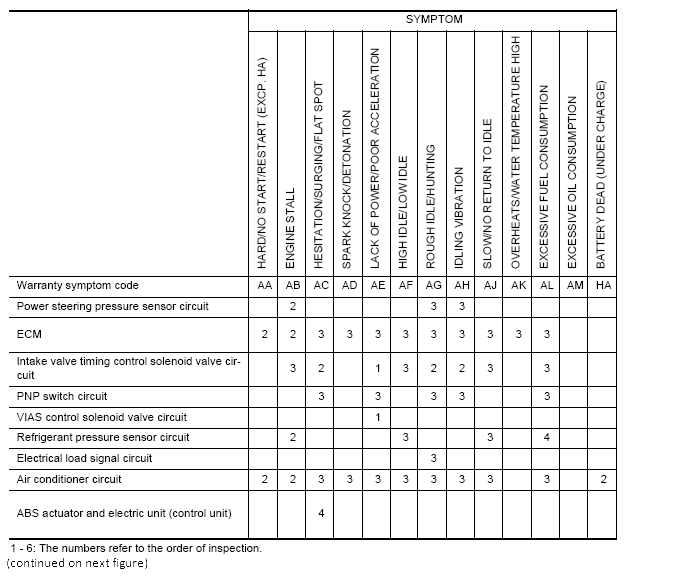

Fig 1: Basic Engine Control System - Symptom Matrix Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

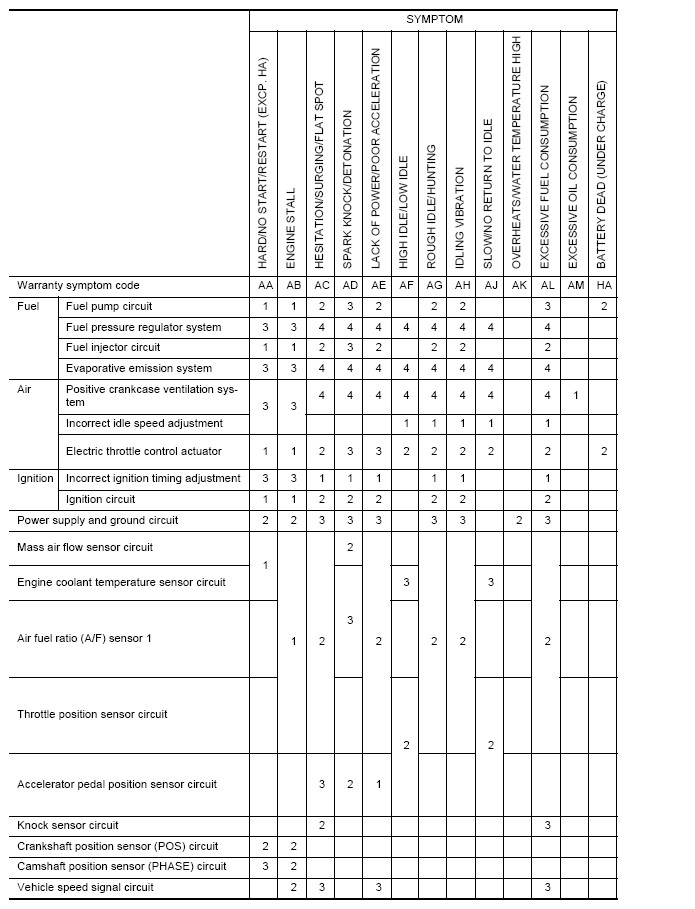

Fig 2: Basic Engine Control System - Symptom Matrix Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
