Engine Control Component Parts/Control Systems Application

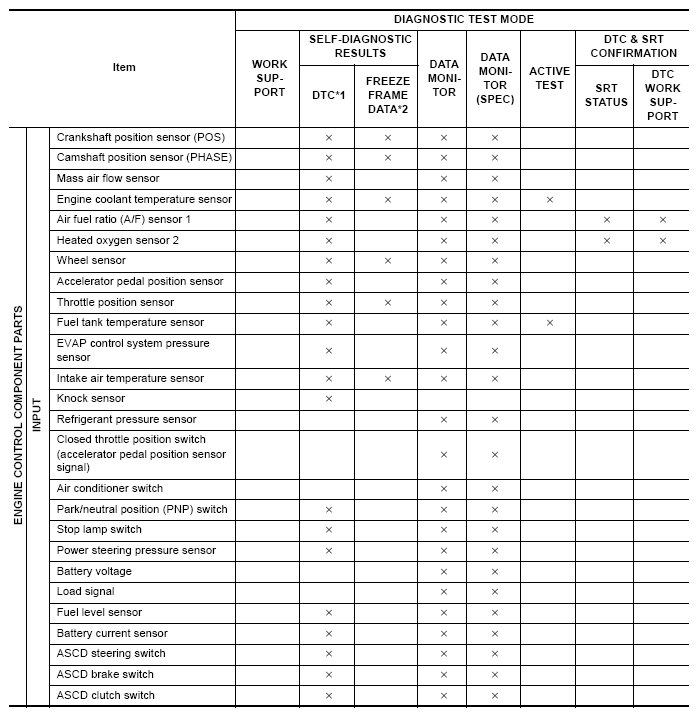

Fig 1: Identifying Engine Control Component Chart (1 Of 2)
G04895387Courtesy of NISSAN NORTH AMERICA, INC.

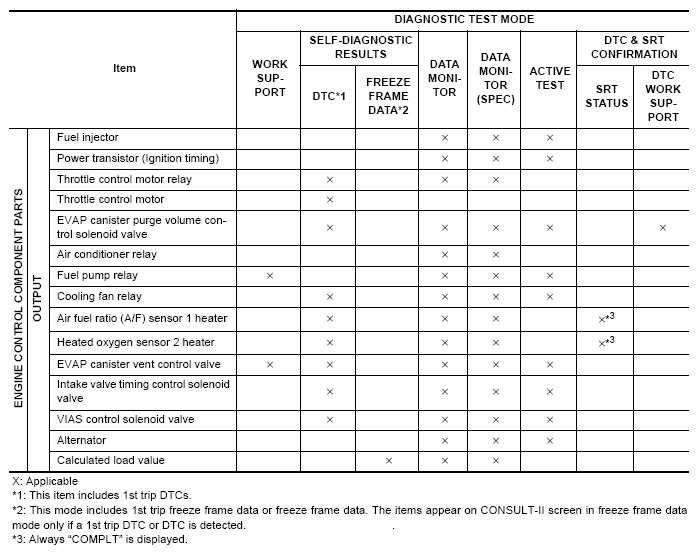

Fig 2: Identifying Engine Control Component Chart (2 Of 2)
G04895388Courtesy of NISSAN NORTH AMERICA, INC.
