Worksheet Sample

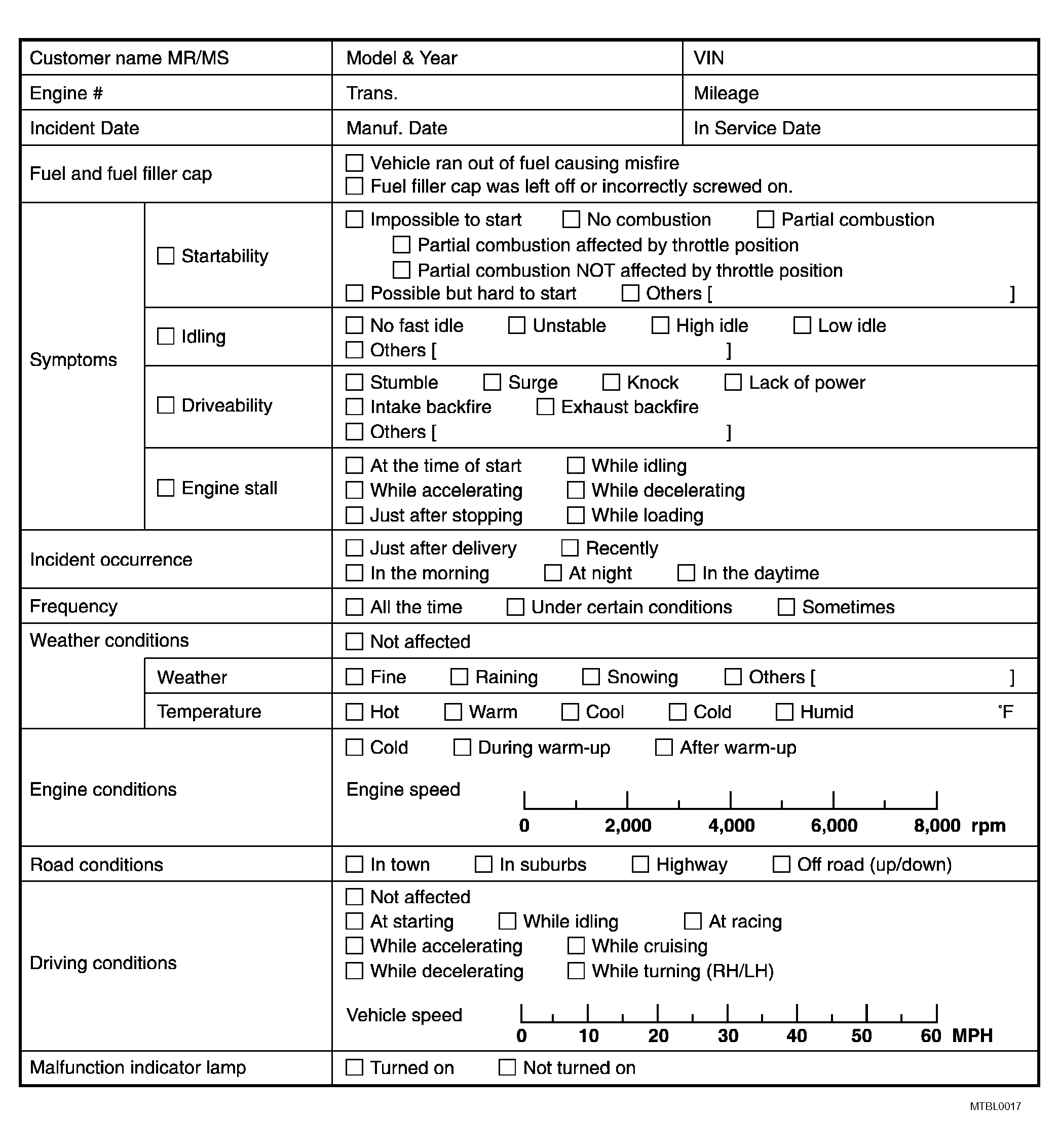

Fig 1: Troubleshooting Worksheet Chart
G04080381Courtesy of NISSAN NORTH AMERICA, INC.
