Control Valve Assembly and Accumulators: Components

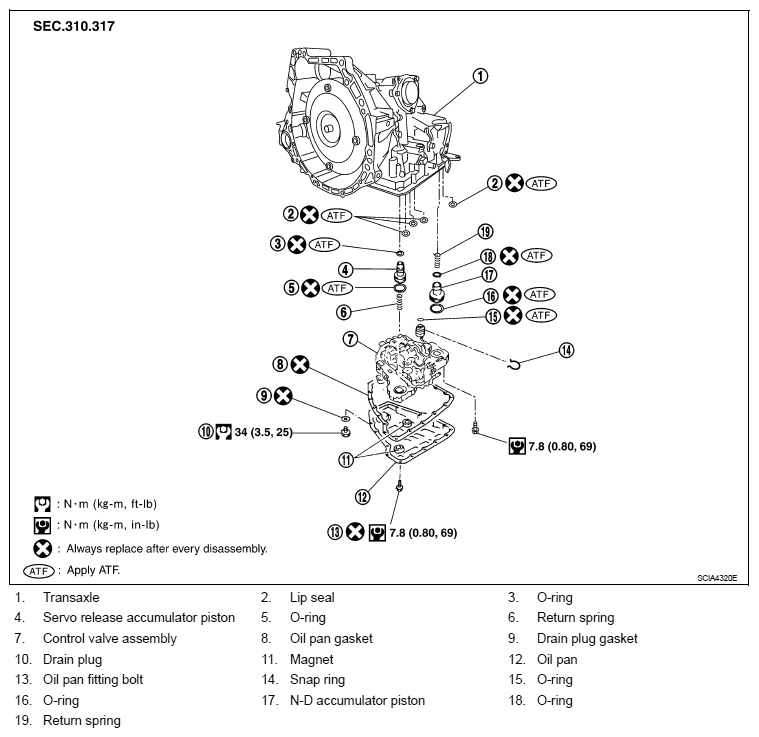

Fig 1: Control Valve Assembly And Accumulators Replacement Components With Torque Specifications

G06154397

Courtesy of NISSAN MOTOR CO., U.S.A.
