Removal and Installation: Removal

Remove rear view mirror by pushing deflect spring with screwdriver as shown in Fig 1.

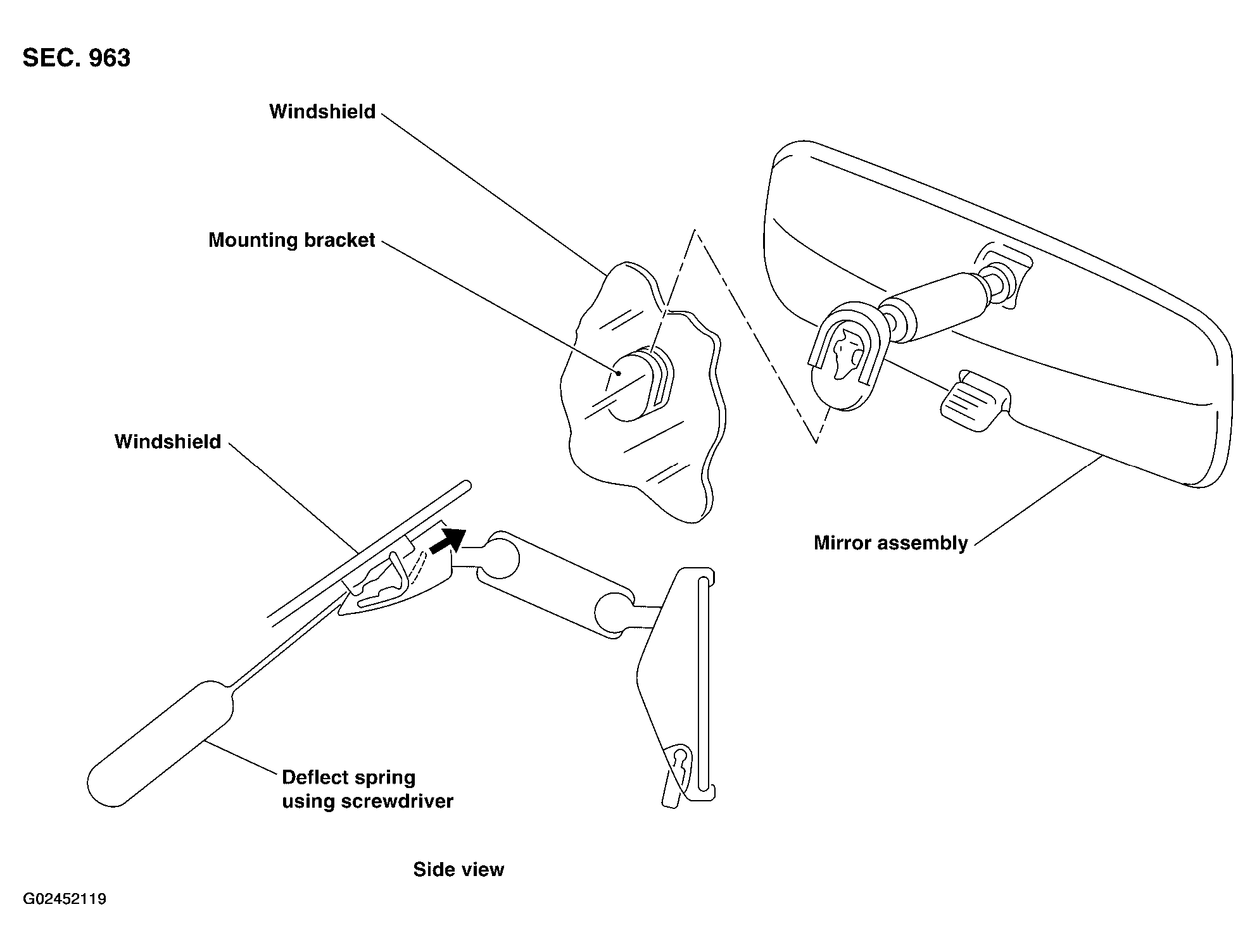

Fig 1: Removing Rear View Mirror Components

G02452119

Courtesy of NISSAN MOTOR CO., U.S.A.
