Operation Procedure

  1. Touch "ABS".

    If "ABS" is not indicated, go to CONSULT-II DATE LINK CONNECTOR (DLC) CIRCUIT

  2. Touch "ACTIVE TEST".

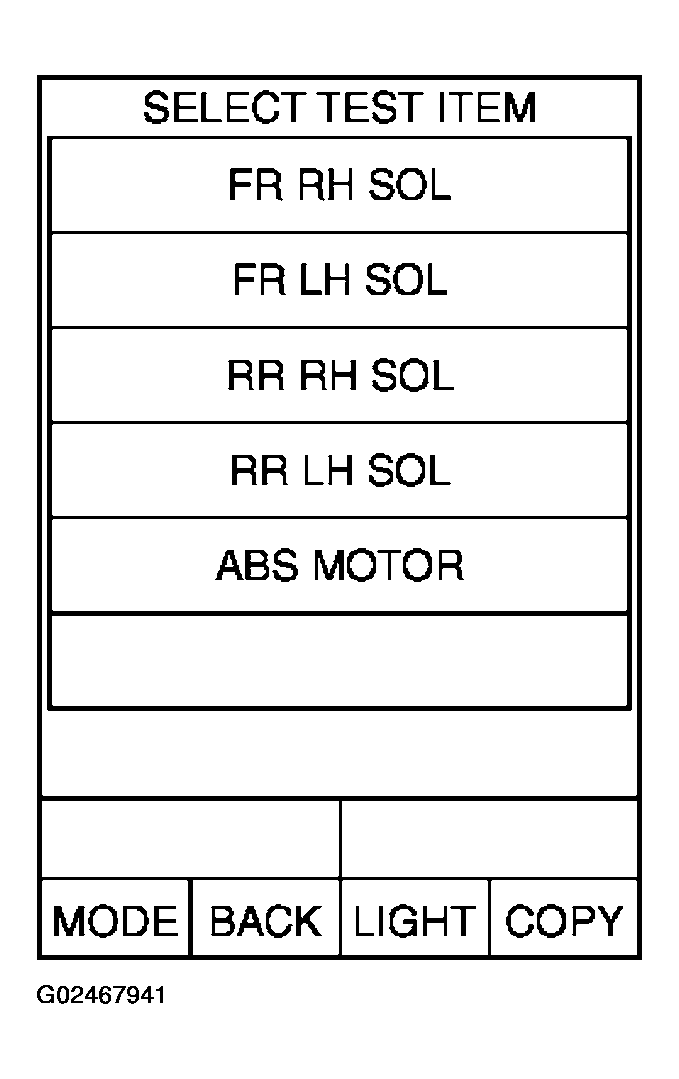

    Fig 1: CONSULT-II Display - SELECT TEST ITEM
    G02467941Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Test item selection screen is displayed.
  4. Touch necessary test item.
  5. With "SELECT TEST SIGNALS" display shown in reverse, touch "START".
  6. "ACTIVE TEST" screen will be displayed, so conduct following test.

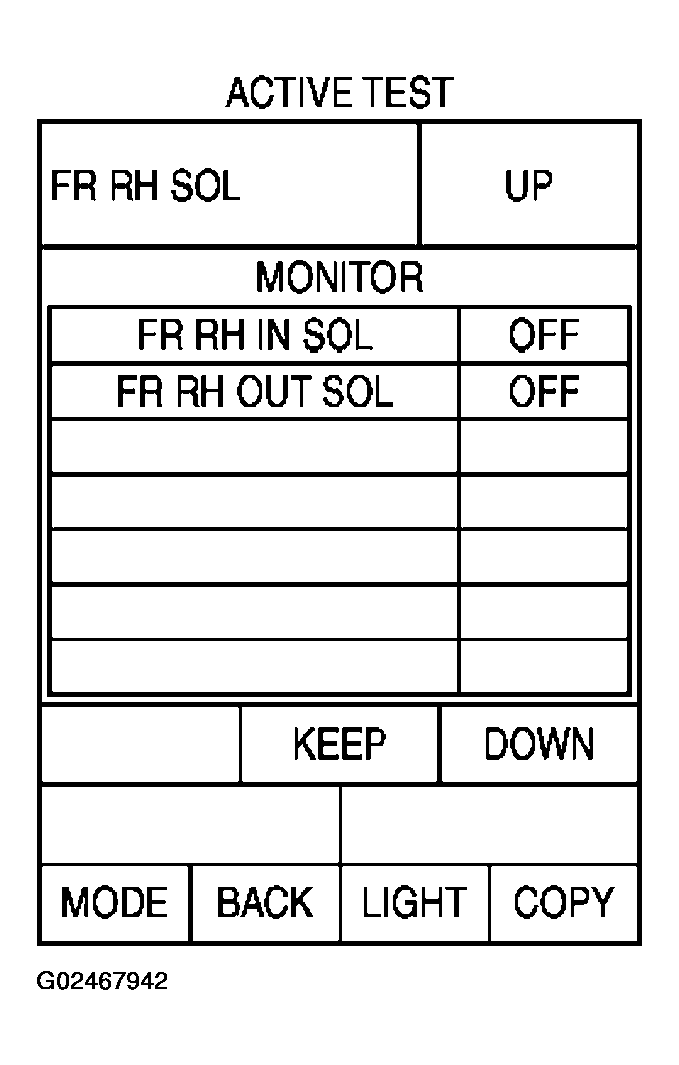

    7. Fig 2: CONSULT-II Display - ACTIVE TEST
    G02467942Courtesy of NISSAN MOTOR CO., U.S.A.
