CONSULT-II Reference Value in Data Monitor Mode

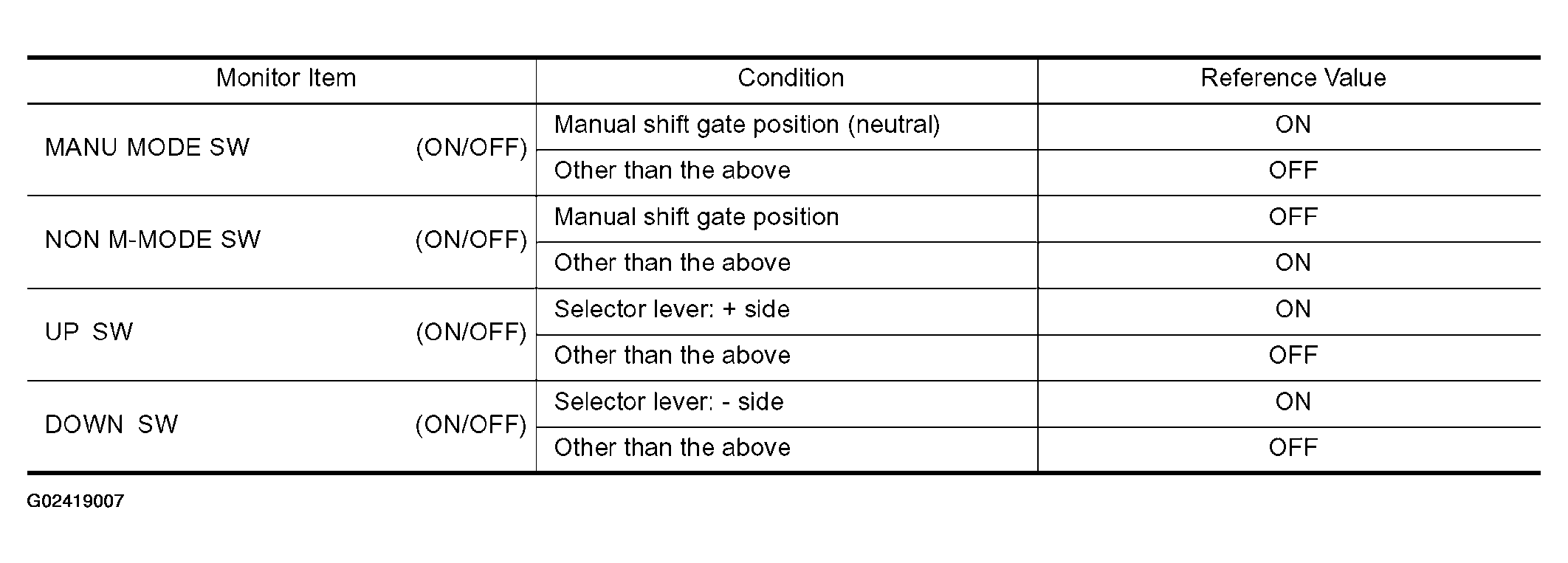

Fig 1: Monitor Item Condition Table
G02419007Courtesy of NISSAN MOTOR CO., U.S.A.
