Terminals and Reference Value for Combination Meter

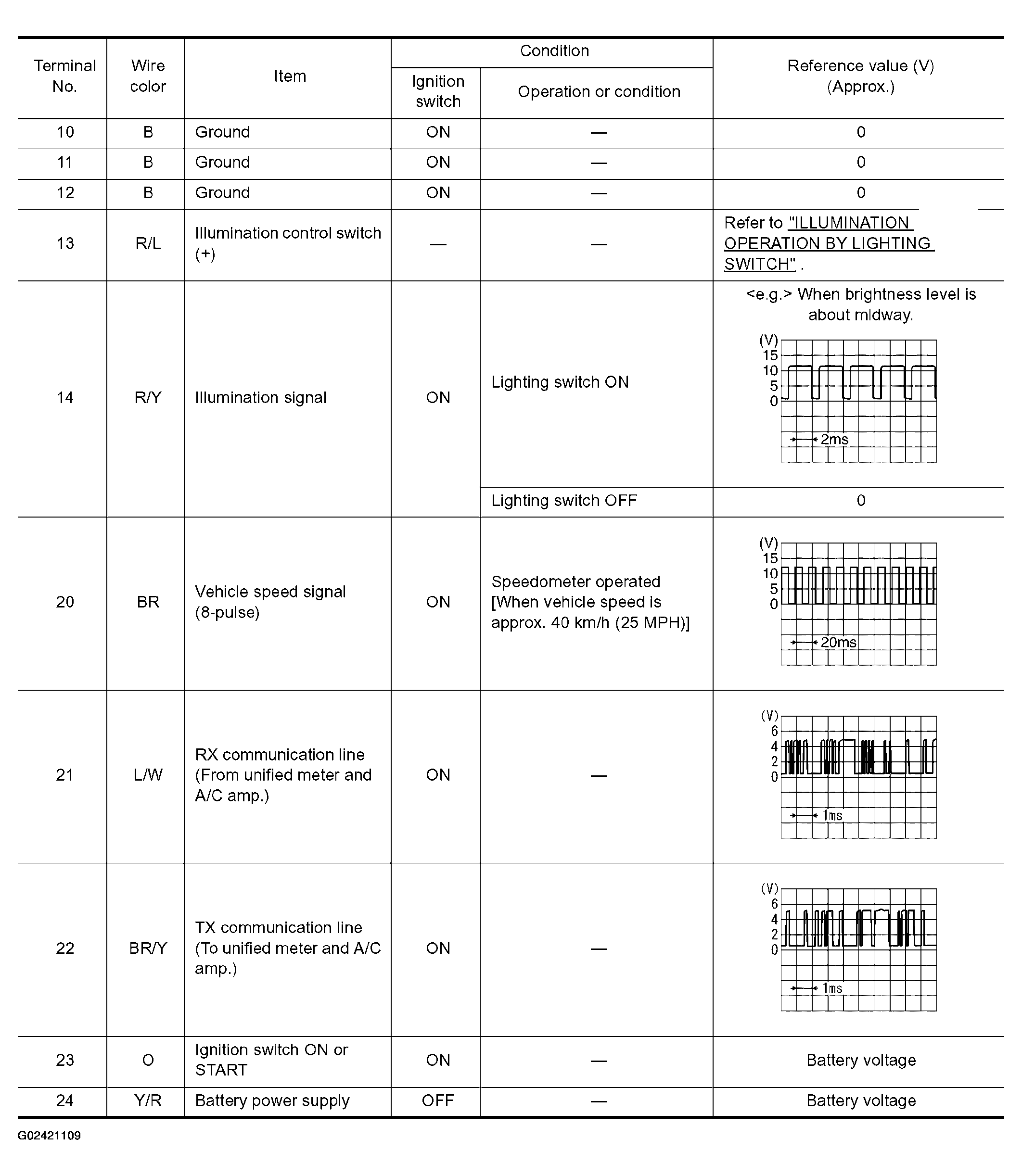

Fig 1: Combination Meter Terminals & Reference Value Chart

G02421109

Courtesy of NISSAN MOTOR CO., U.S.A.
