With Consult-II

  1. Start engine and let it idle.
  2. Select "BAT CUR SEN" in "DATA MONITOR" mode with CONSULT-II.
  3. Check "BAT CUR SEN" indication for 10 seconds.

    "BAT CUR SEN" should be above 2, 300m V at least once  .

  4. If NG, go to "DIAGNOSTIC PROCEDURE ".

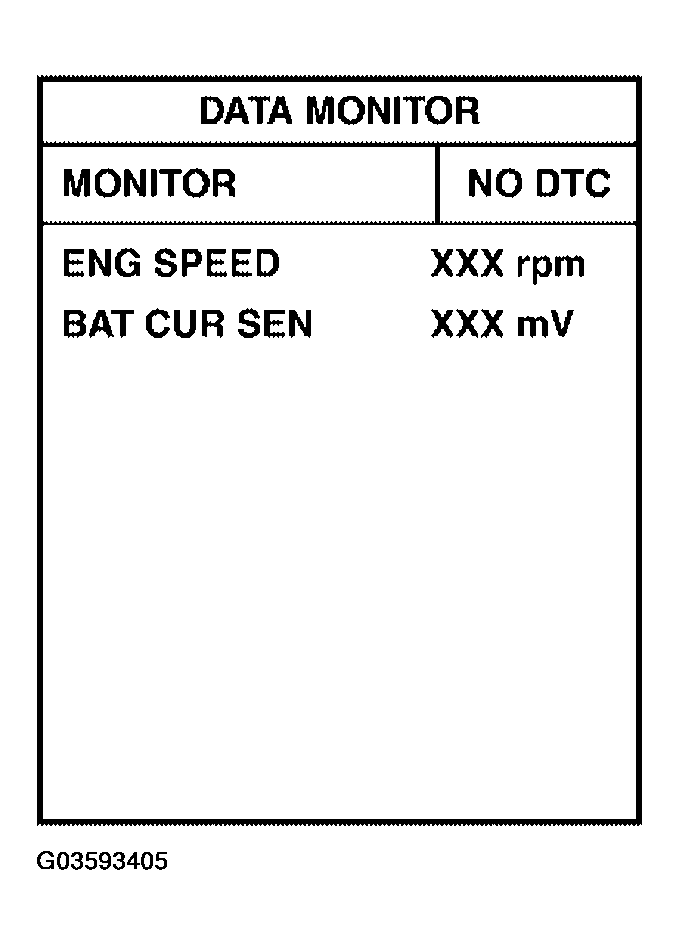

    Fig 1: DATA MONITOR - CONSULT-II Display
    G03593405Courtesy of NISSAN MOTOR CO., U.S.A.
