Altima SE-R, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System - VQ35DE
>>
Trouble Diagnosis
>>
Circuit Diagram
Circuit Diagram

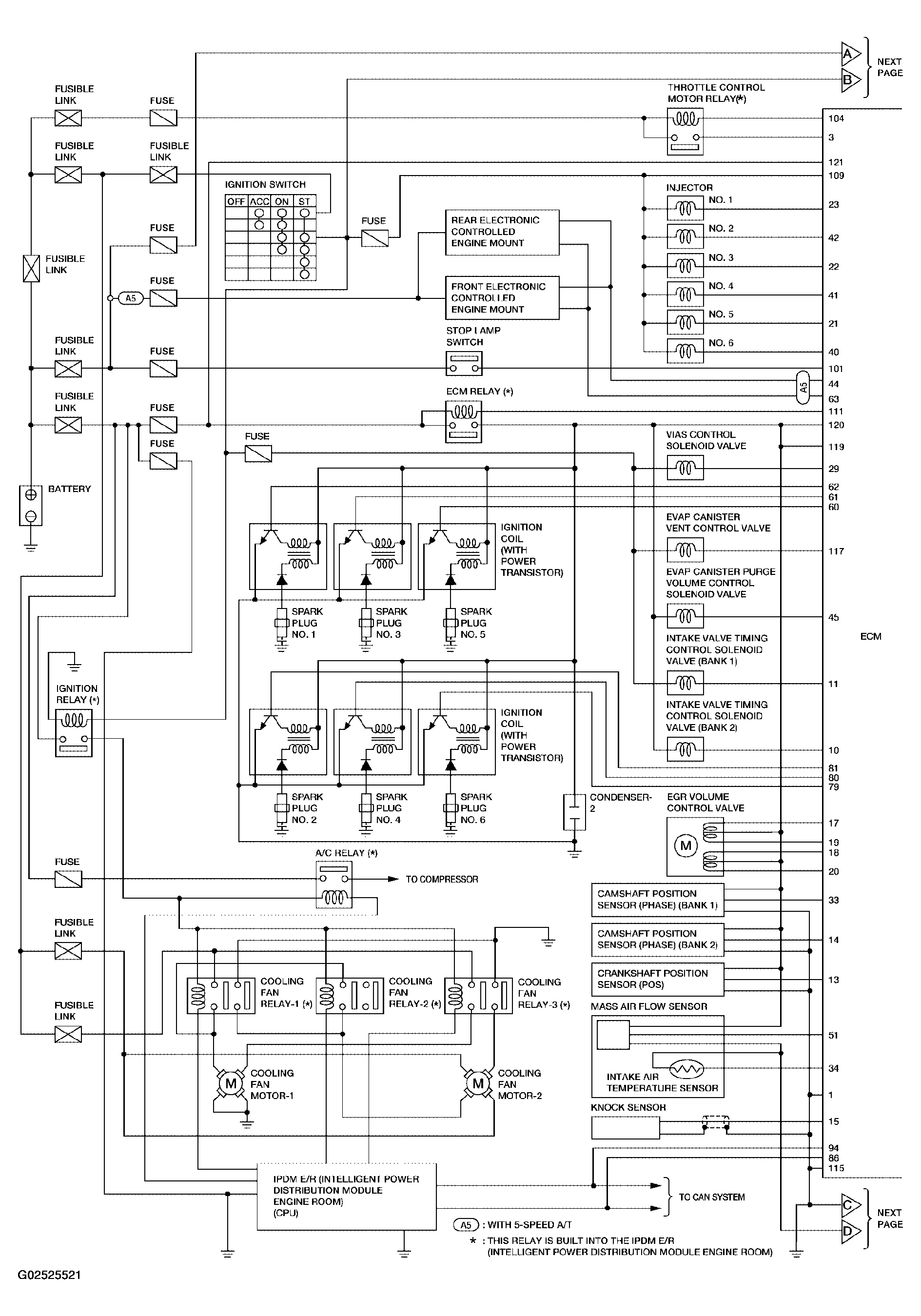

Fig 1: Identifying Vacuum Control System Circuit Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

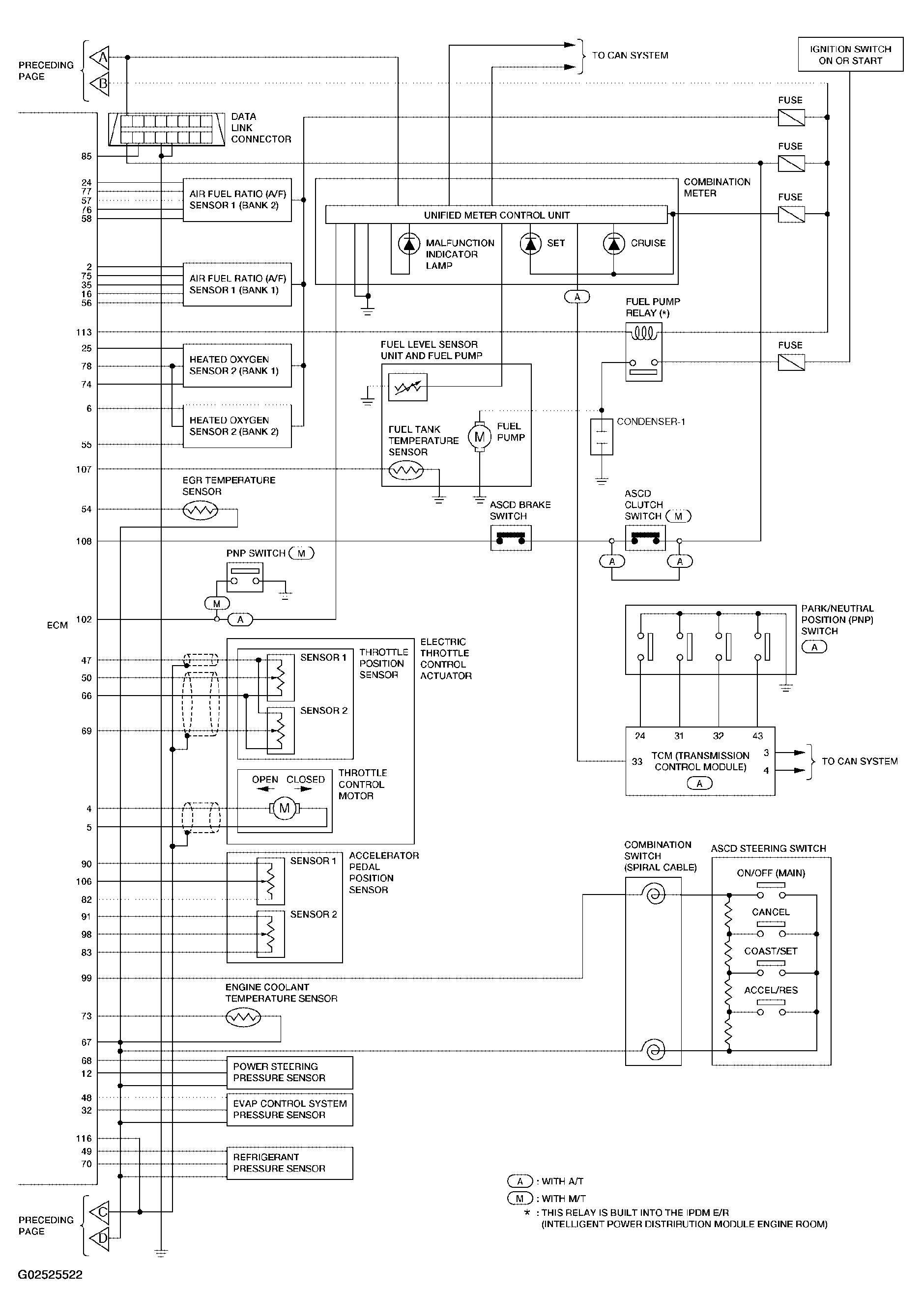

Fig 2: Identifying Vacuum Control System Circuit Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
