DTC P1124, P1126: Throttle Control Motor Relay: Wiring Diagram

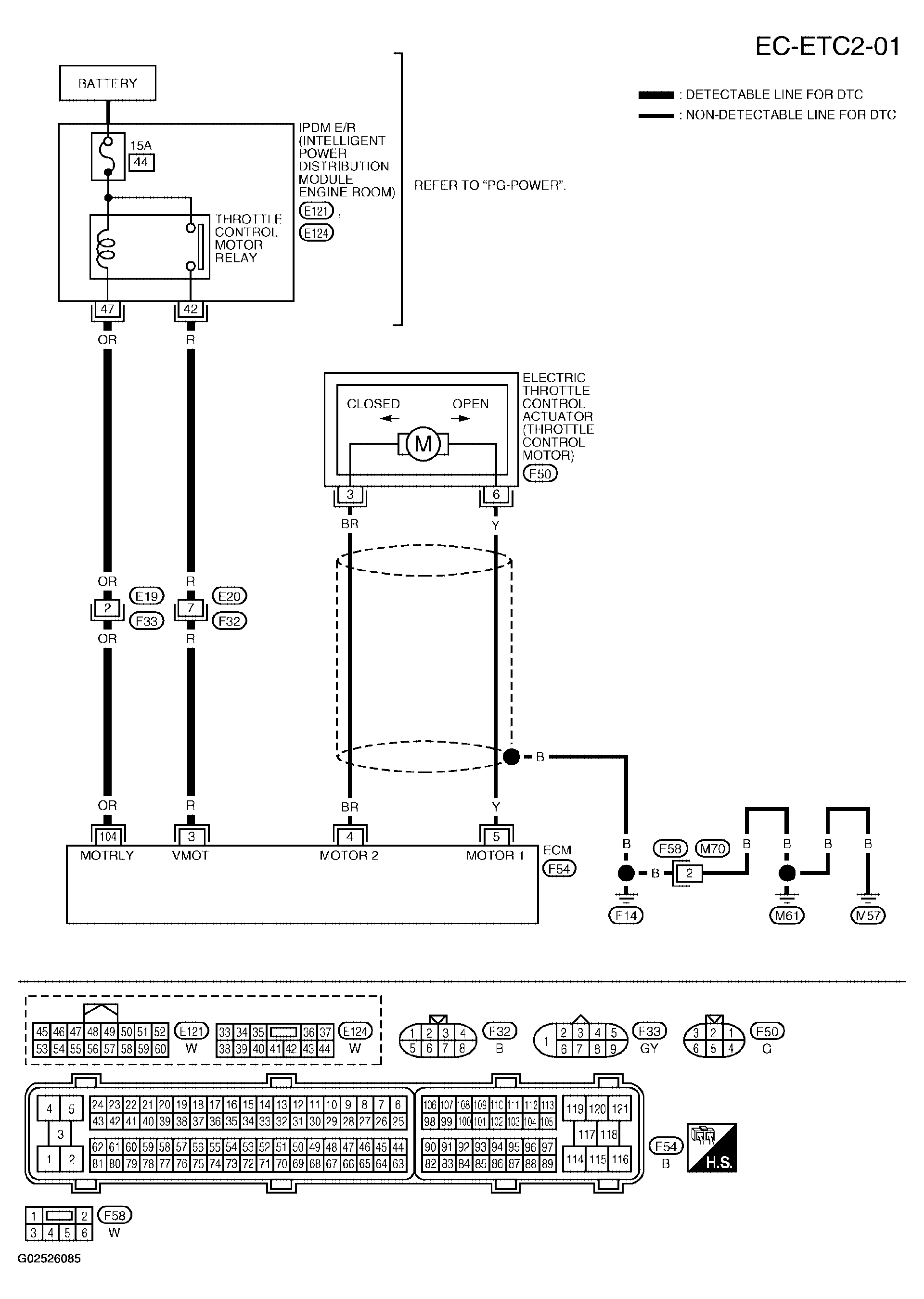

Fig 1: Wiring Diagram EC-ECT2-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

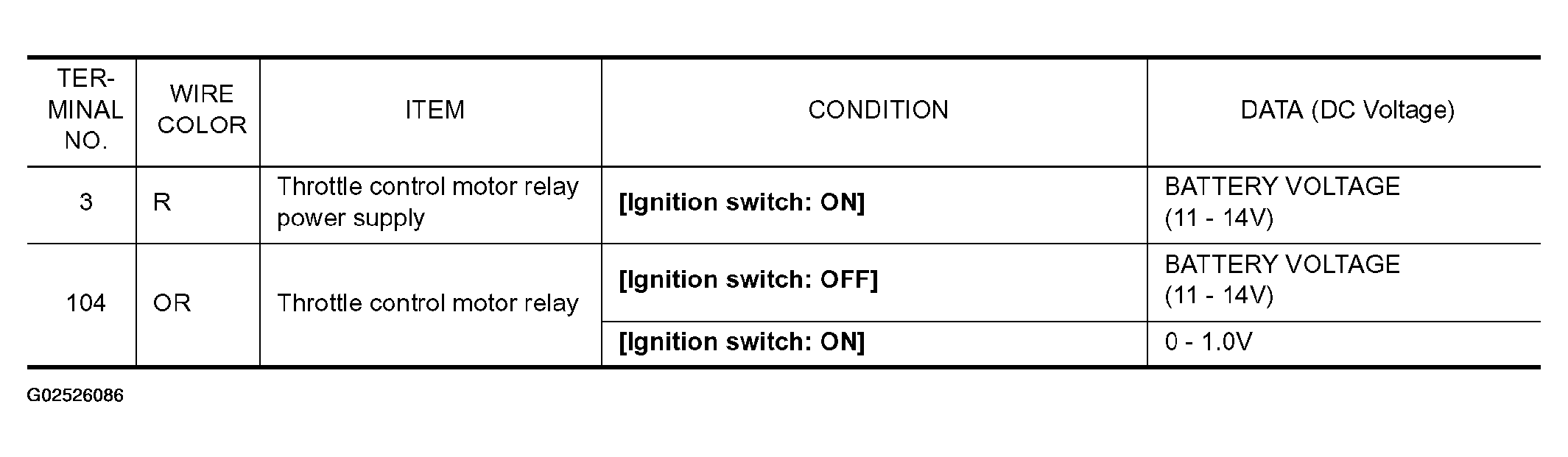

Fig 2: Terminals And Voltage Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
