Nissan-Datsun
>>
2005
>>
Altima SE-R, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (Re5F22A)
>>
Service Data And Specifications (SDS)
>>
A/T Fluid Temperature Sensor
A/T Fluid Temperature Sensor

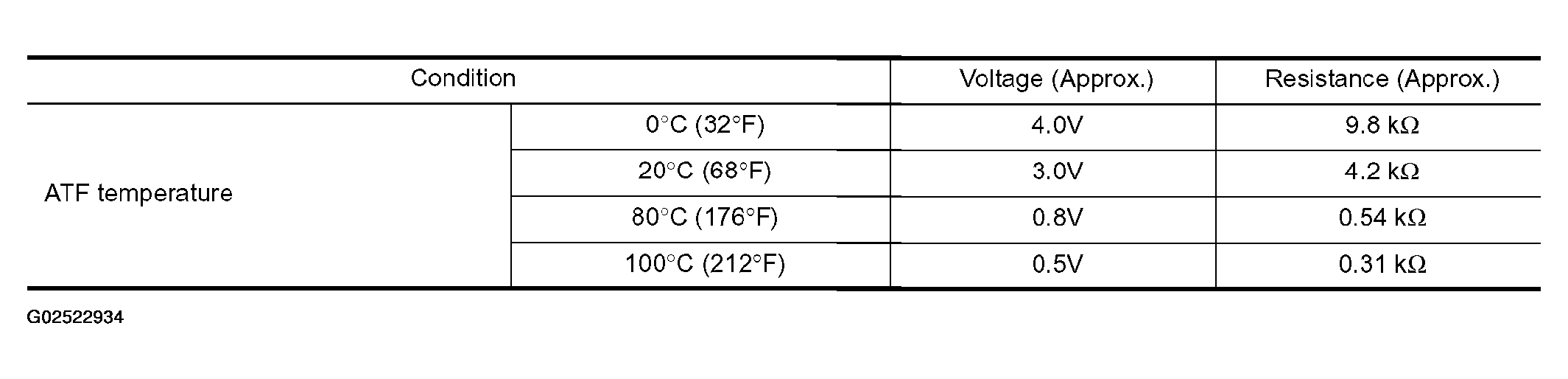

Fig 1: A/T Fluid Temperature Sensor Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
