With Consult-II
- Turn ignition switch ON.

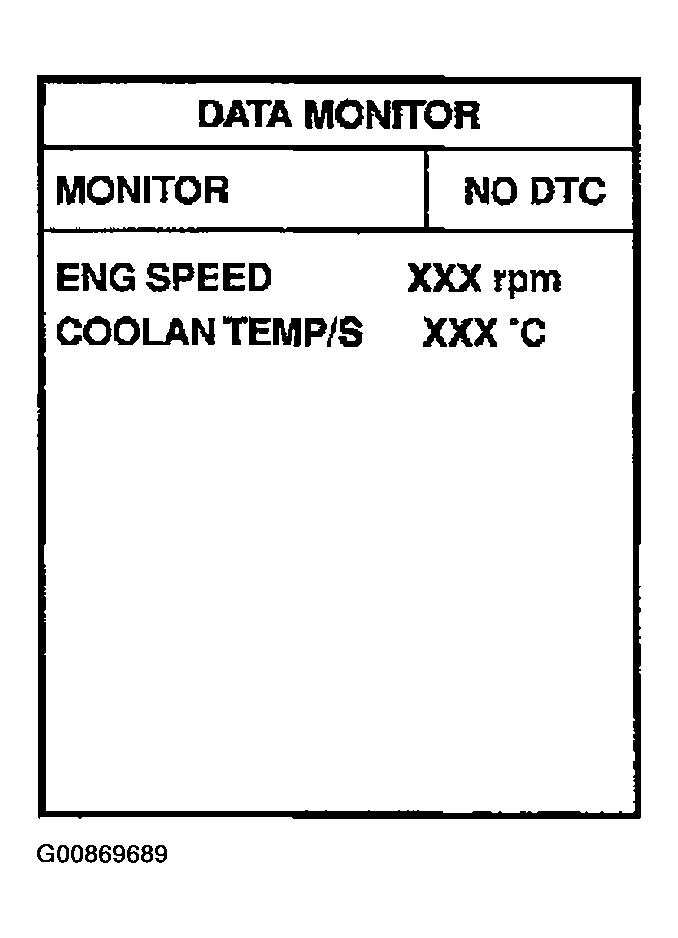

- Select "DATA MONITOR" mode with CONSULT-II.
- Wait at least 10 seconds.
If the result is NG, go to Diagnostic Procedure .
If the result is OK, go to following step.
- Check "COOLAN TEMP/S" value.
If "COOLAN TEMP/S" is less than 60°C (140°F), the result will be OK.
If "COOLAN TEMP/S" is above 60°C (140°F), go to the following step.
- Cool engine down until "COOLAN TEMP/S" is less than 60°C (140°F).
- Wait at least 10 seconds.
- If 1 ST trip DTC is detected, go to Diagnostic Procedure .
