Wiring Diagram - SHIFT -

NOTE: For references in wiring diagrams to PG-POWER, see SYSTEM WIRING DIAGRAMS - GROUND DISTRIBUTION and POWER DISTRIBUTION .

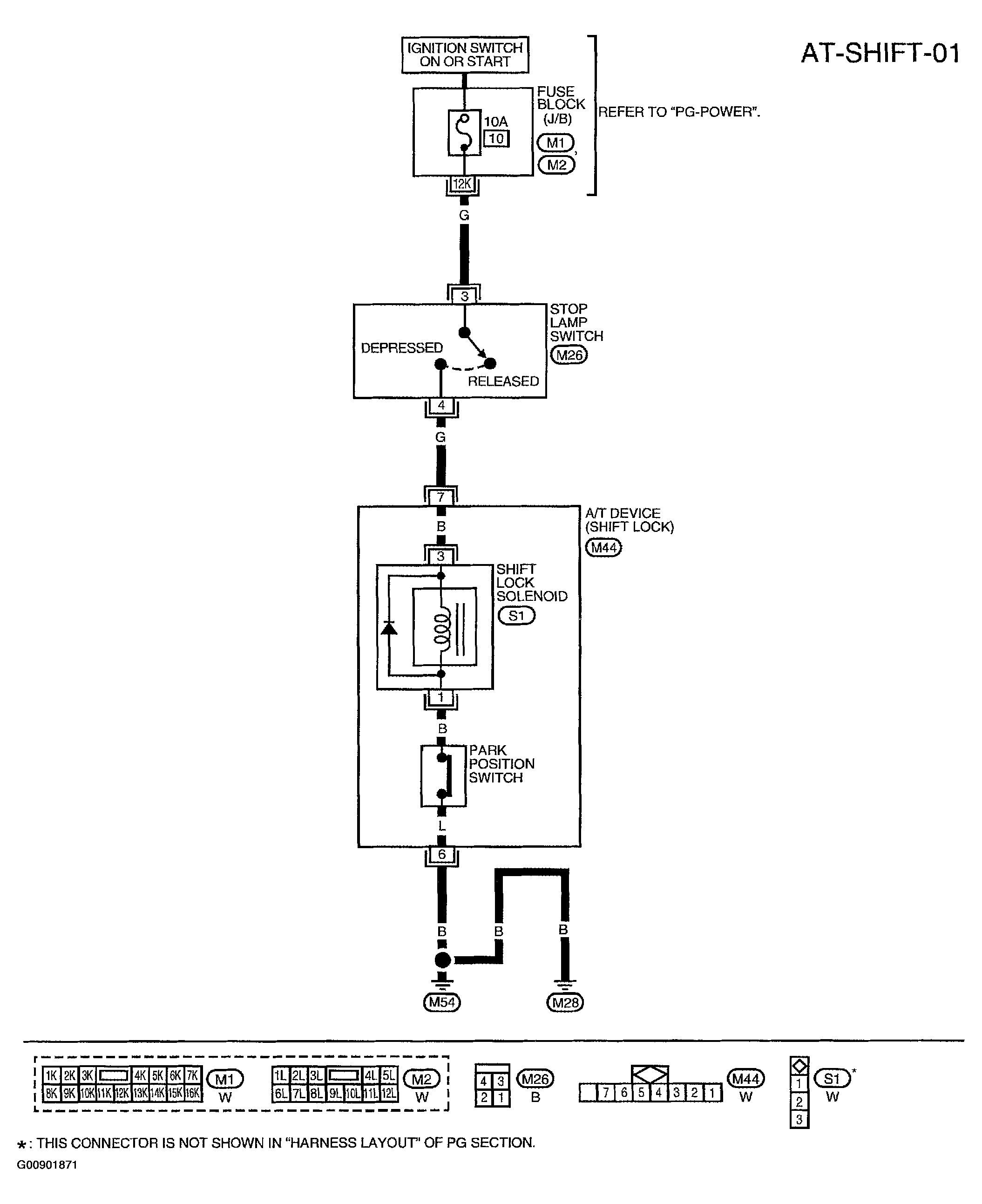

Fig 1: Wiring Diagram - AT-SHIFT-01

Courtesy of NISSAN MOTOR CO., U.S.A.
