Circuit Protection Devices
WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

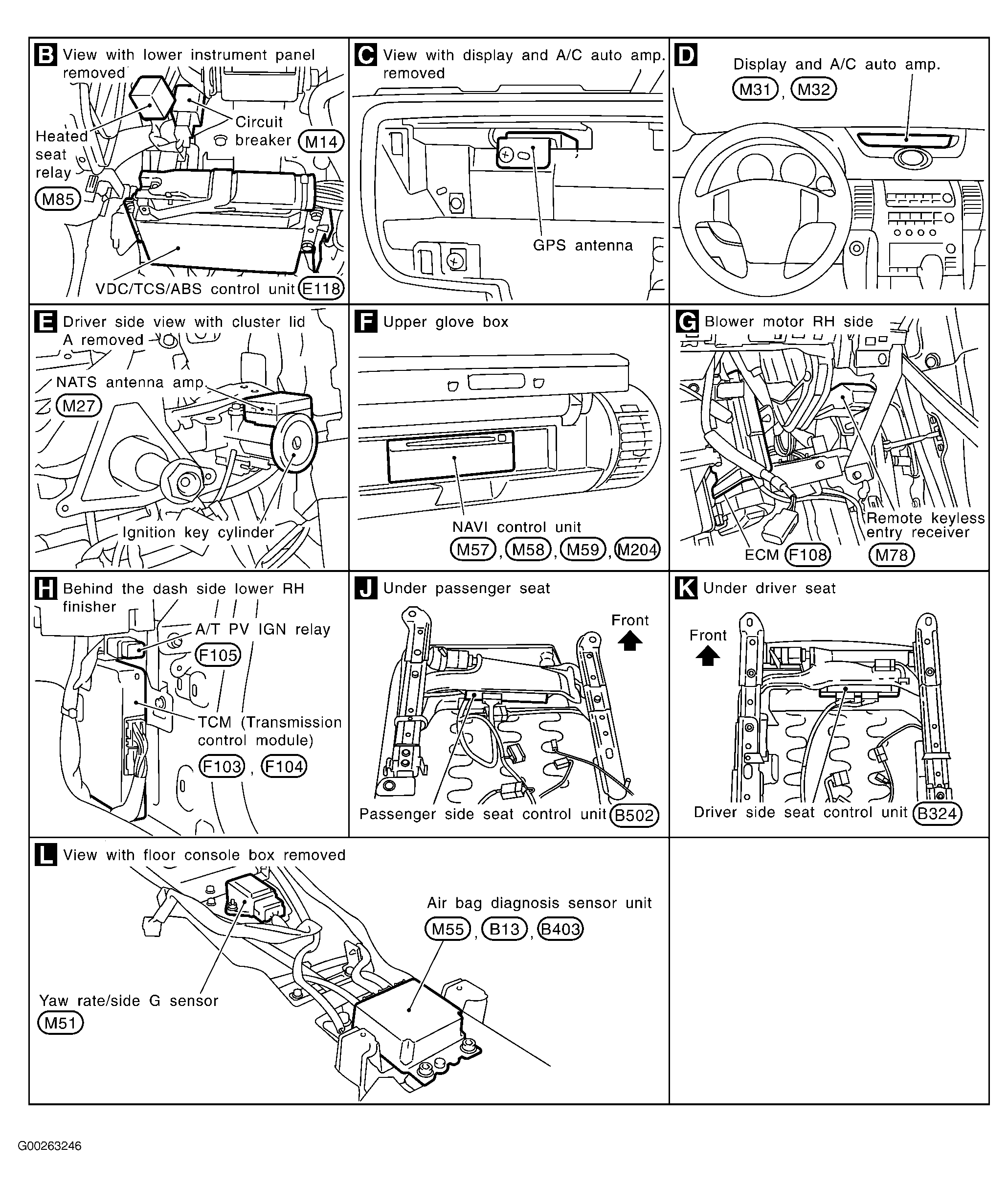

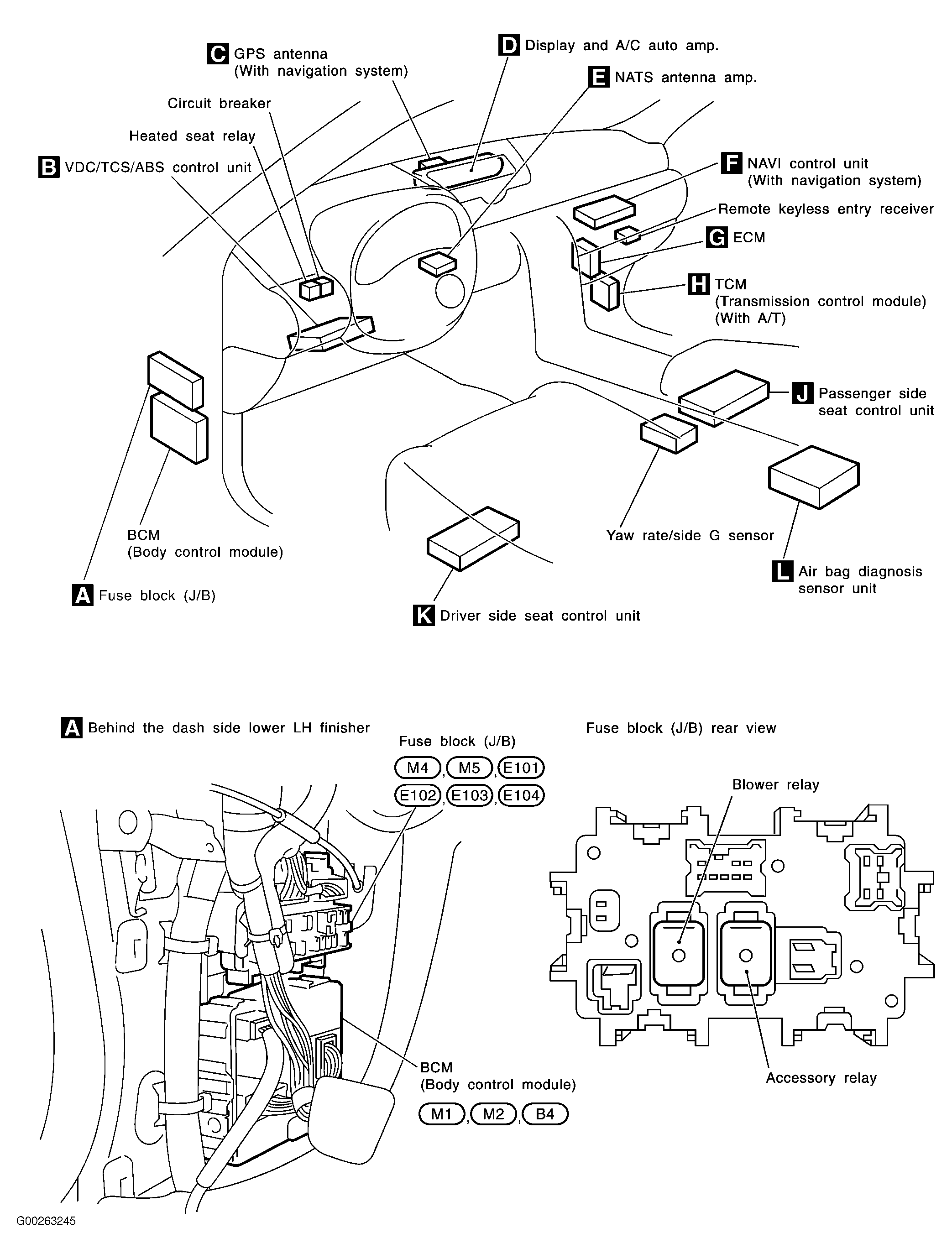

| Circuit Breaker | Behind left side of dash. See Figure . |
| Fuse Block (J/B) | Behind left kick panel. See Figure . |

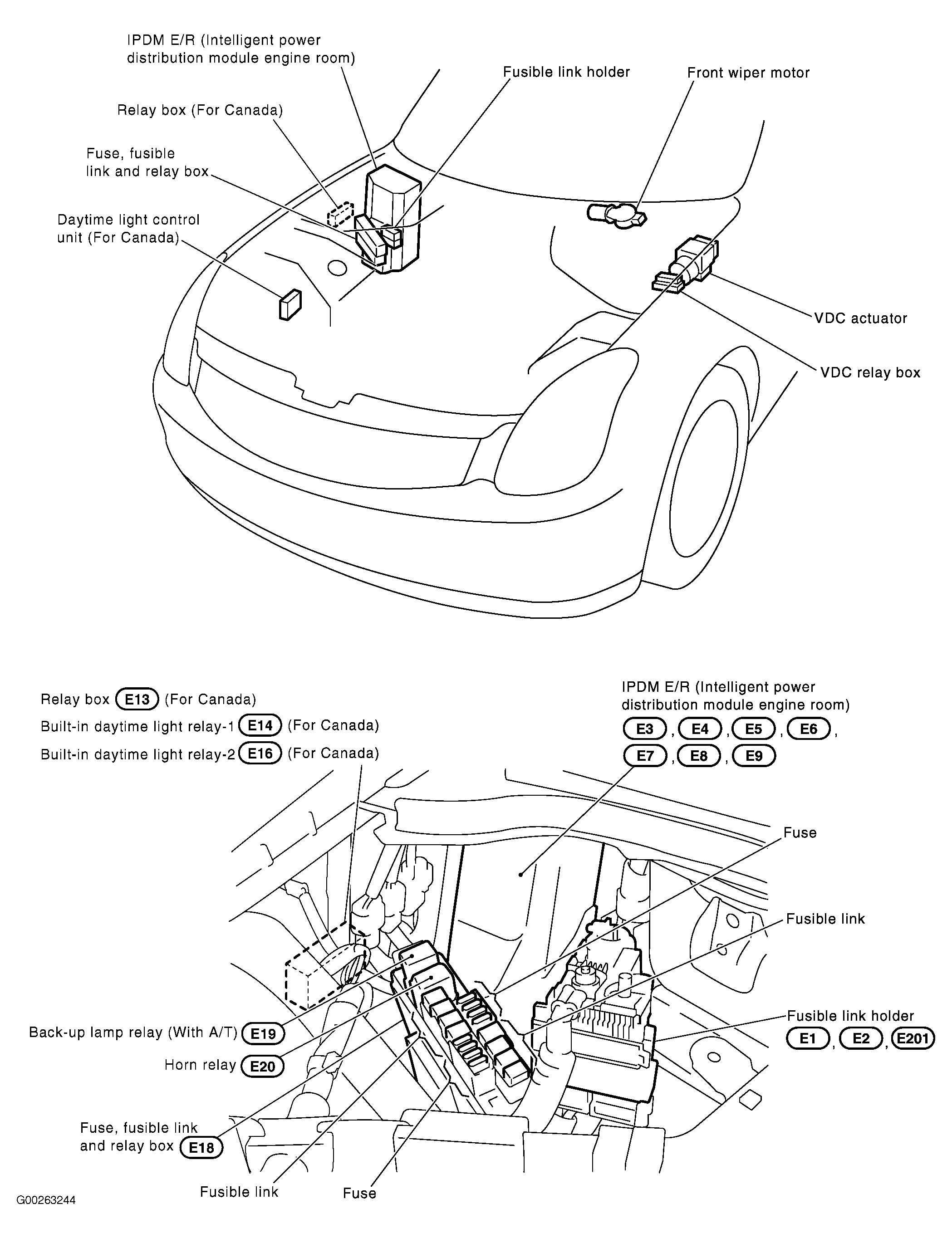

| Fuse, Fusible Link & Relay Box | At right rear of engine compartment. See Figure . |
| Fusible Link Holder | At right rear of engine compartment. See Figure . |
| Fusible Links | In fusible link & relay box, at right rear of engine compartment. See Figure . |
| IPDM E/R (Intelligent Power Distribution Module Engine Room) | At right rear of engine compartment. See Figure . |
| Relay Box (Canada) | At right rear of engine compartment. See Figure . |

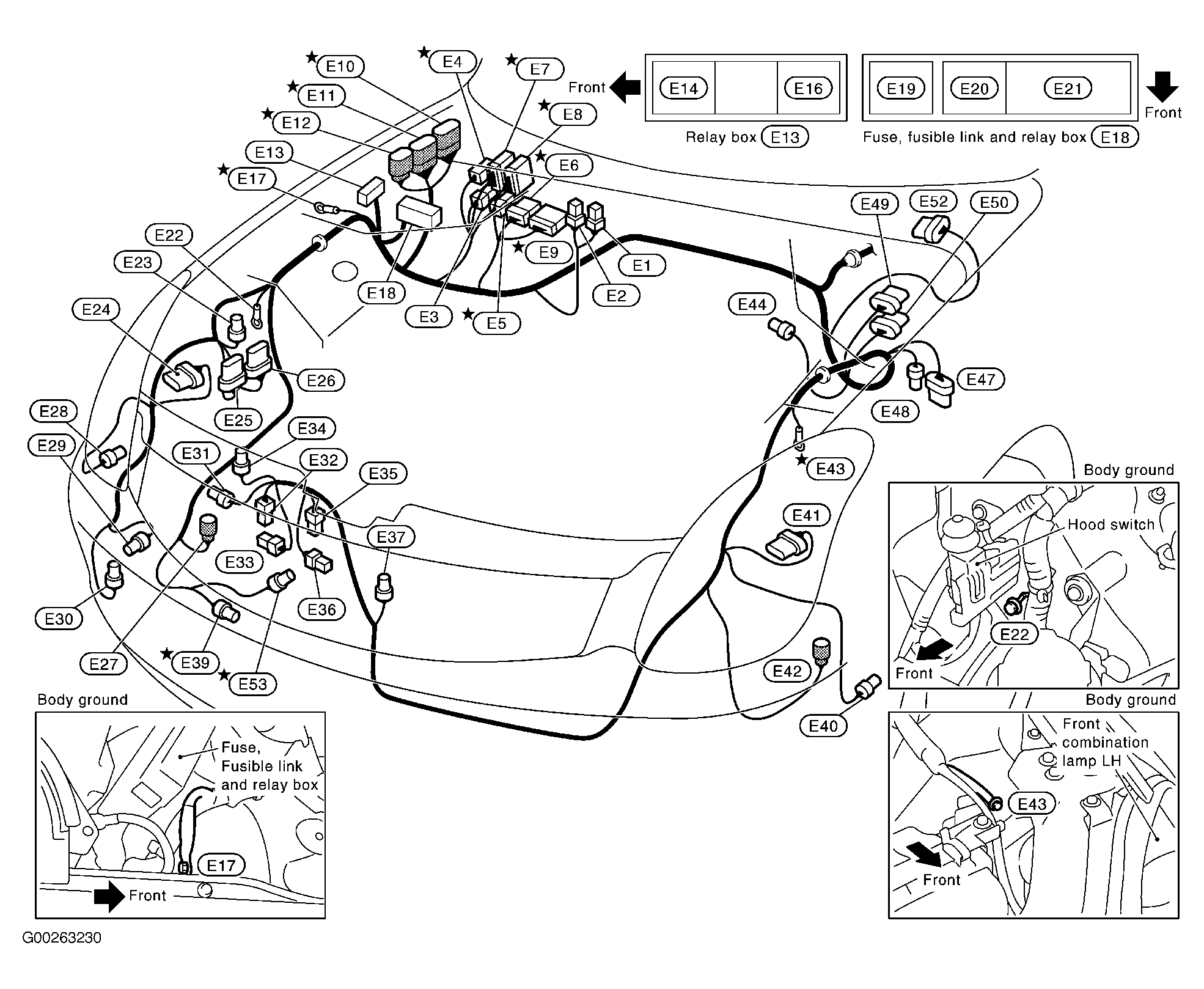

| VDC Relay Box (E47) | At left rear of engine compartment. See Figure . |
