Section 2371 (Automatic Transmission - Introduction (Re5F22A))
>>
Re5F22A
>>
A/T Control System
>>
Cross-Sectional View
Cross-Sectional View
WARNING:
This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

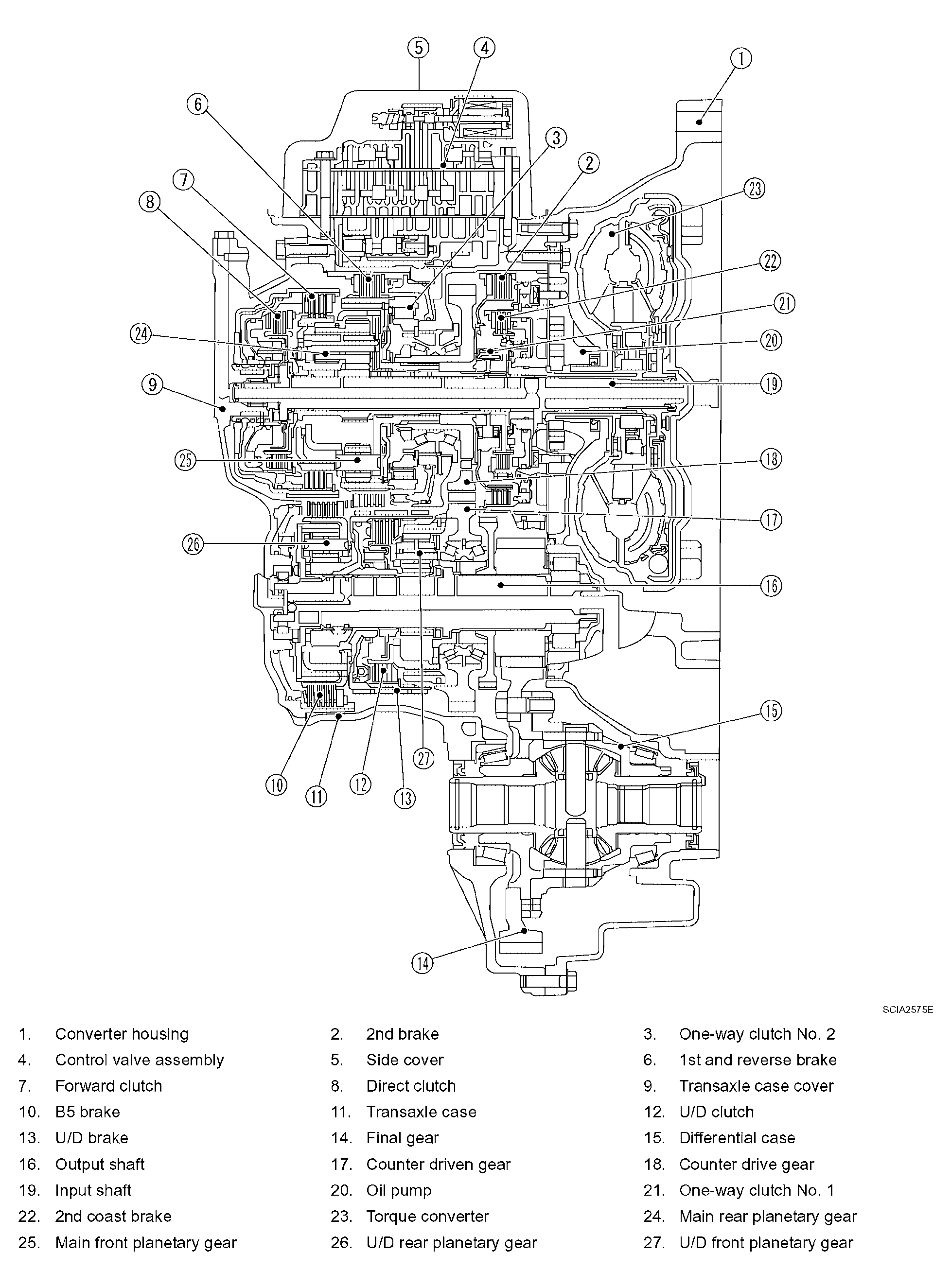

Fig 1: A/T Control System Cross-Sectional View
Courtesy of NISSAN MOTOR CO., U.S.A.
