Front Refrigeration System

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

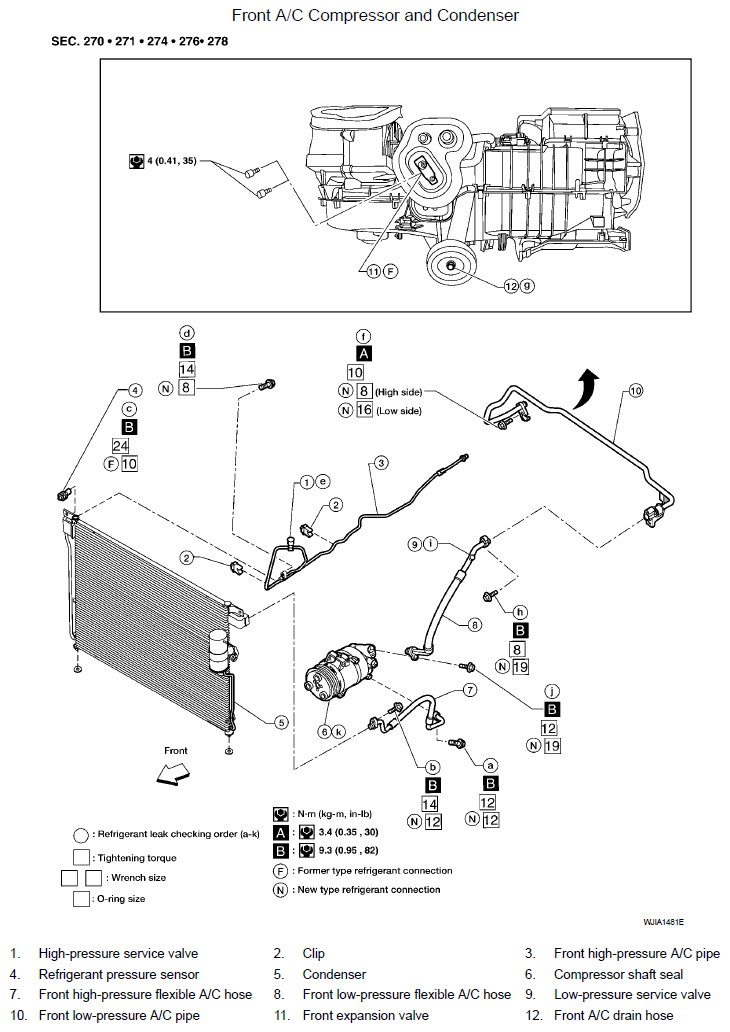

Fig 1: Exploded View Of Front A/C Compressor And Condenser With Torque Specifications
G07155753
