Front No. 2 Speaker: Installation
WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

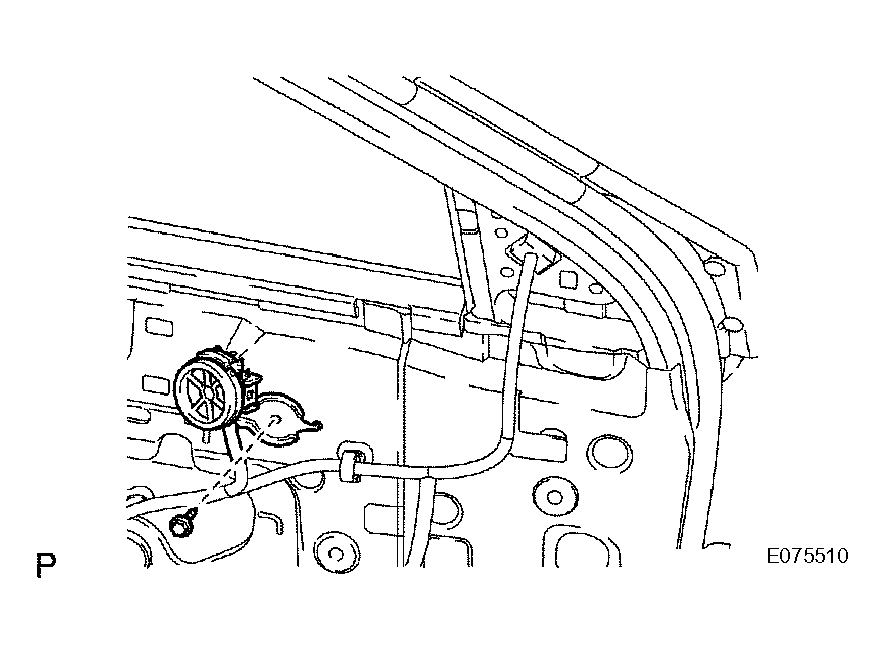

- INSTALL FRONT NO.2 SPEAKER ASSEMBLY LH
- Install the speaker with the screw.
- Connect the connector
- INSTALL FRONT DOOR TRIM BOARD SUBASSEMBLY LH (See REASSEMBLY )
- INSTALL ASSIST GRIP COVER LH (See REASSEMBLY )
- INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH (See REASSEMBLY )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (see INITIALIZATION ).
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
