Front No. 1 Speaker: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

INSTALL FRONT NO. 1 SPEAKER ASSEMBLY LH
1. Using an air riveter or hand riveter, install 3 new strike rivets on the front No. 1 speaker on the front door panel.
  HINT:

  Install the new strike rivets in order as shown in the illustration.

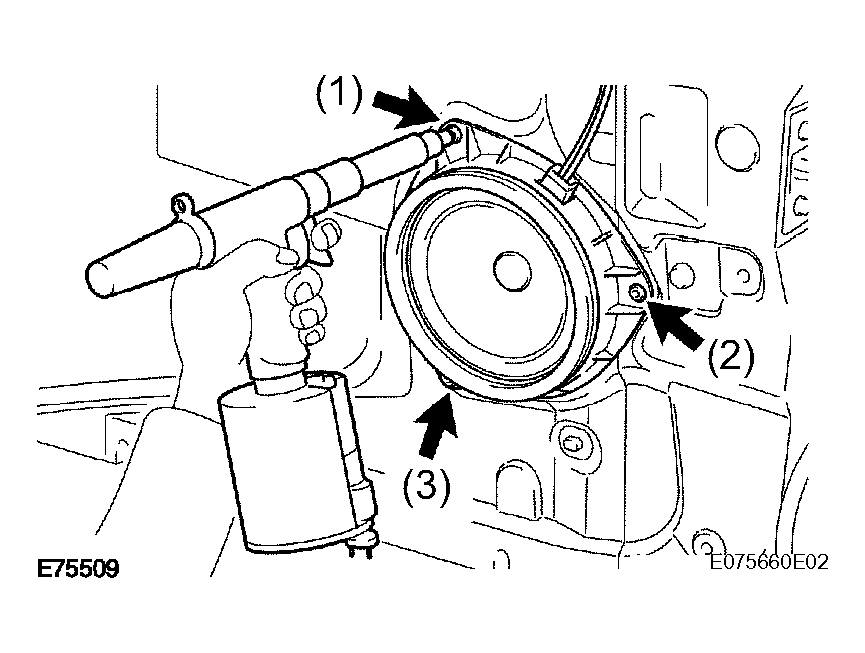

  Fig 1: Installing Front No. 1 Speaker Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.

    Fig 2: Installing New Strike Rivets (1 Of 3)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Confirm that the rivets are seated properly against the speaker. Do not tilt the riveter when installing the rivet to the speaker. Do not leave any space between the rivet head and the speaker.

    Fig 3: Installing New Strike Rivets (2 Of 3)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Do not leave any space between the speaker and door. Firmly hold together the 2 items while installing the rivet.
2. Connect the connector.
INSTALL FRONT DOOR TRIM BOARD SUBASSEMBLY LH (See REASSEMBLY )
INSTALL ASSIST GRIP COVER LH (See REASSEMBLY )
INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH (See REASSEMBLY )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Fig 4: Installing New Strike Rivets (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
