Removal and Installation (2WD): Components

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

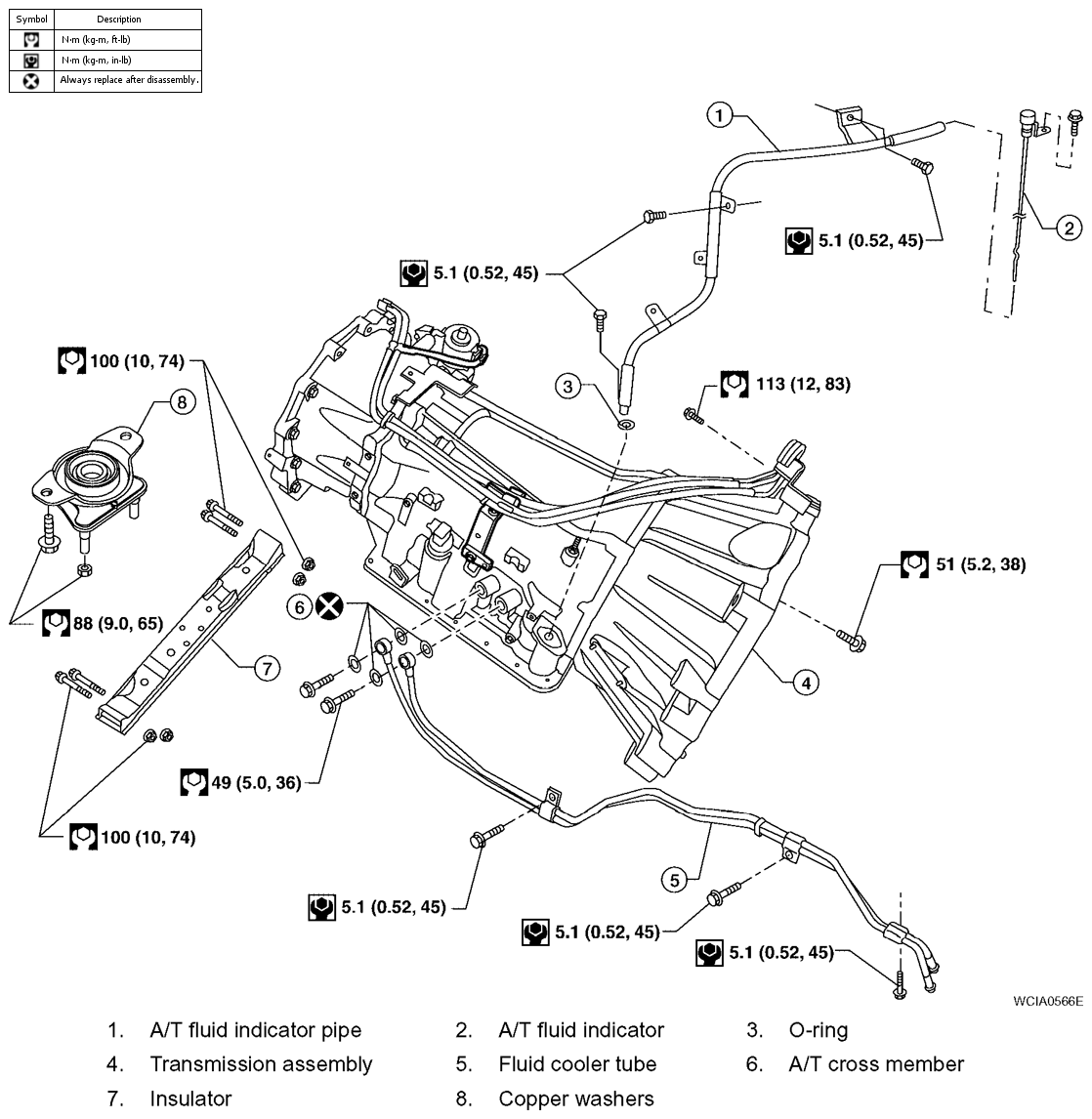

Fig 1: Transmission Assembly Replacement Components With Torque Specifications - 2WD

Courtesy of NISSAN MOTOR CO., U.S.A.
