Checking Condition Of Installation

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Check the installation condition of the steering gear assembly, front suspension, axle and steering column.
Check if movement exists when the steering wheel is pushed up and down, left and right and in the axial direction.
End play of the axle direction for steering wheel: 0 mm (0 in)
Check if the mounting nuts for the steering gear assembly are loose. Refer to "POWER STEERING GEAR AND LINKAGE ".

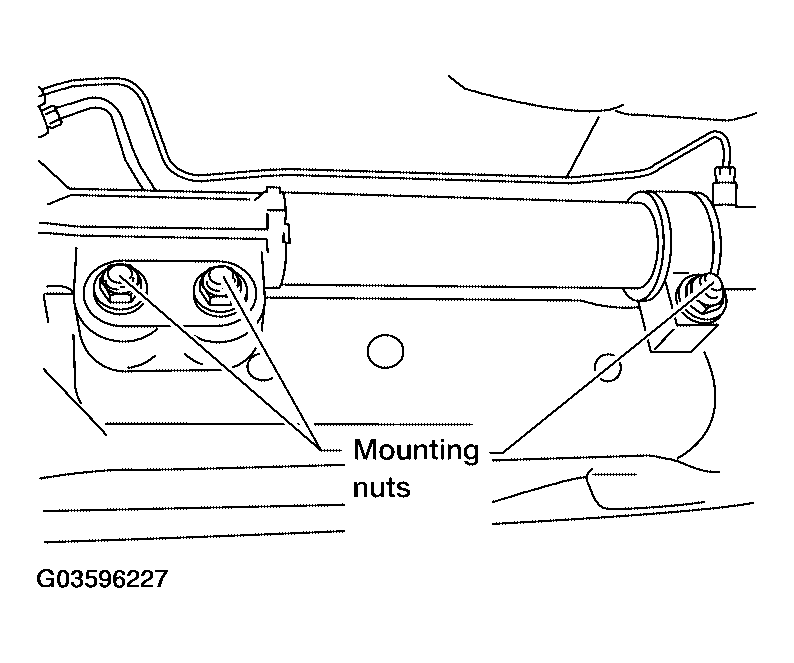

Fig 1: Locating Steering Gear Assembly Mounting Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.
