Passenger Side Power Window Motor Circuit Check

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER WINDOW SUB-SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Power window sub-switch operate, check voltage between passenger side power window motor connector and ground.

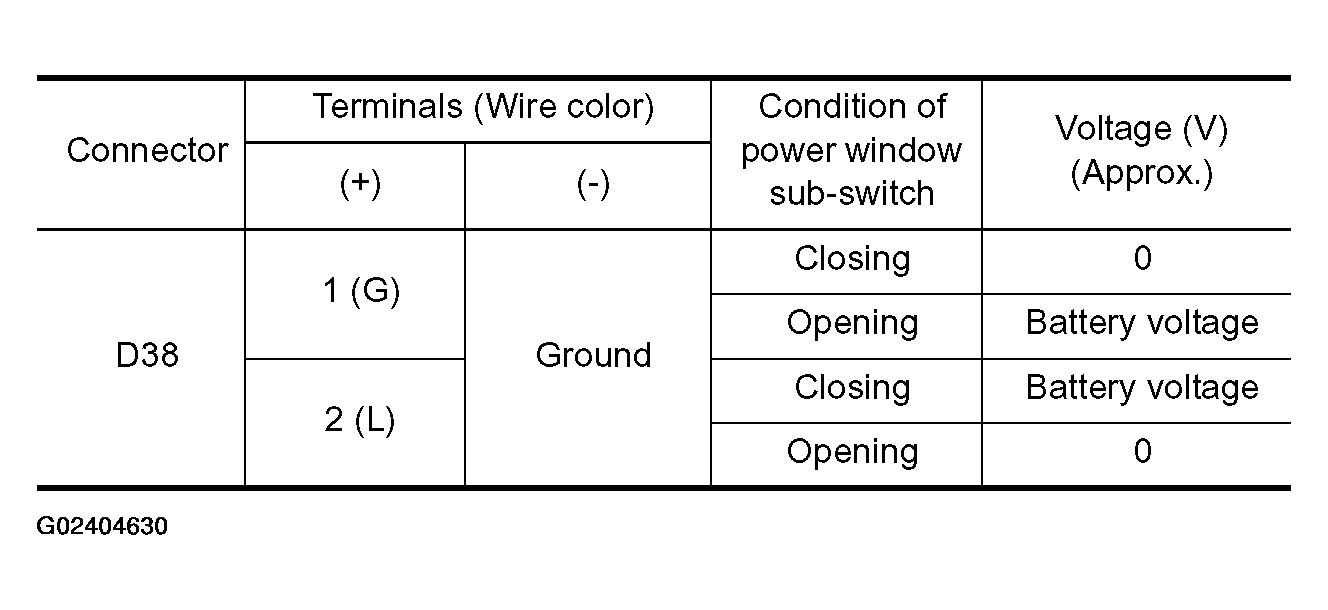

  Fig 1: Passenger Side Power Window Motor Connector & Ground Voltage Specifications Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 2: Passenger Side Power Window Motor Connector & Ground Voltage Test
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Replace passenger side power window motor.
- NG: GO TO 2.
CHECK POWER WINDOW MOTOR (PASSENGER SIDE) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window sub-switch and passenger side power window motor connector.
3. Check continuity between power window sub-switch connector D37 terminals 8, 9 and passenger side power window motor connector D38 terminals 1, 2.
  - 9 (G) - 1 (G): Continuity should exist.
  - 8 (L) - 2 (L): Continuity should exist.
  Fig 3: Power Window Sub-Switch Connector D37 Terminals 8, 9 & Passenger Side Power Window Motor Connector D38 Terminals 1, 2Continuity Test
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Further inspection is necessary. Refer to symptom chart.
- NG: Repair or replace harness.
