Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front bumper fascia. Refer to "REMOVAL AND INSTALLATION " in Exterior & interior article.
  2. Remove fog lamp mounting bolt.
  3. Pull out fog lamp from vehicle and disconnect fog lamp connector.

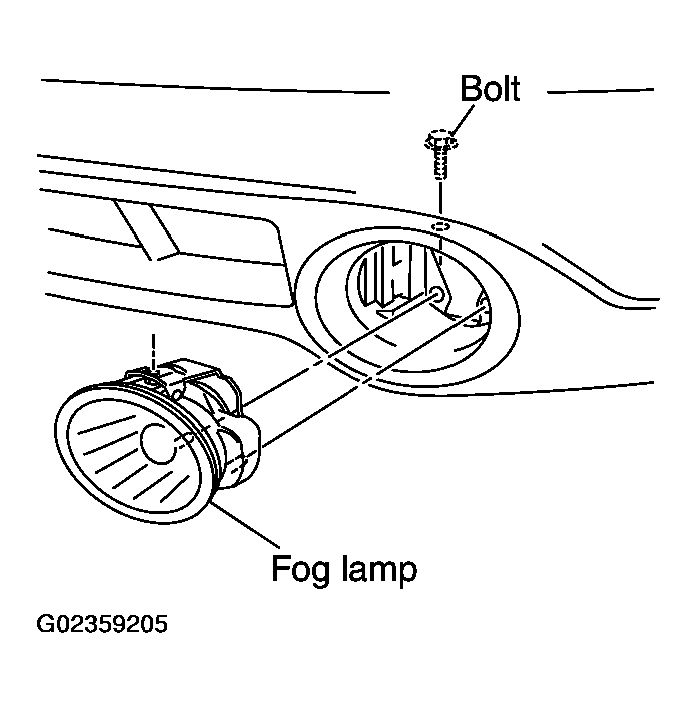

    Fig 1: Removing Fog Lamp Mounting Bolt
    G02359205Courtesy of NISSAN MOTOR CO., U.S.A.
