DTC U1000, U1001: Can Communication Line: Wiring Diagram

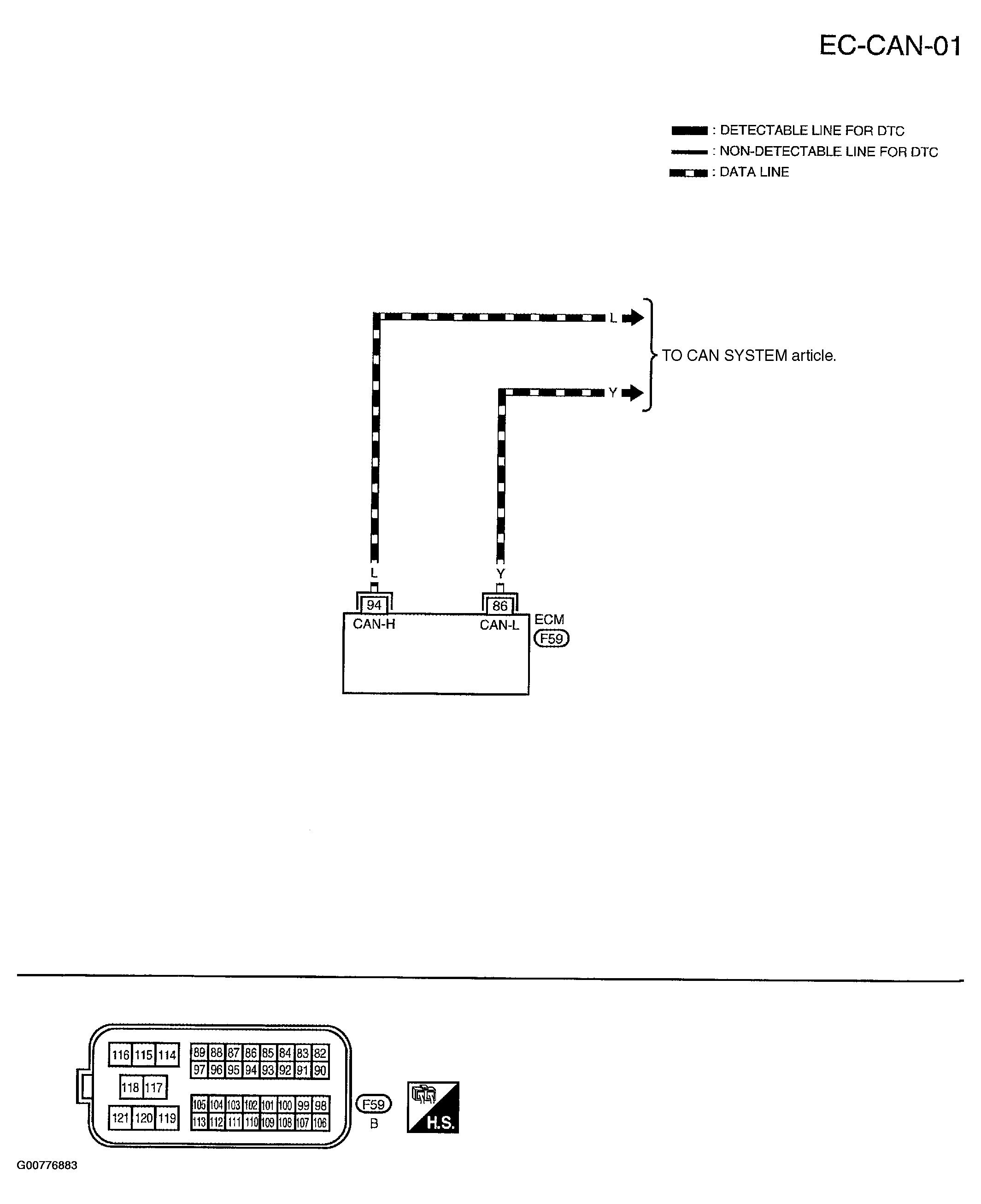

Fig 1: CAN Communication Line Wiring Diagram

G00776883

Courtesy of NISSAN MOTOR CO., U.S.A.
