Mil & Data Link Connectors: Wiring Diagram

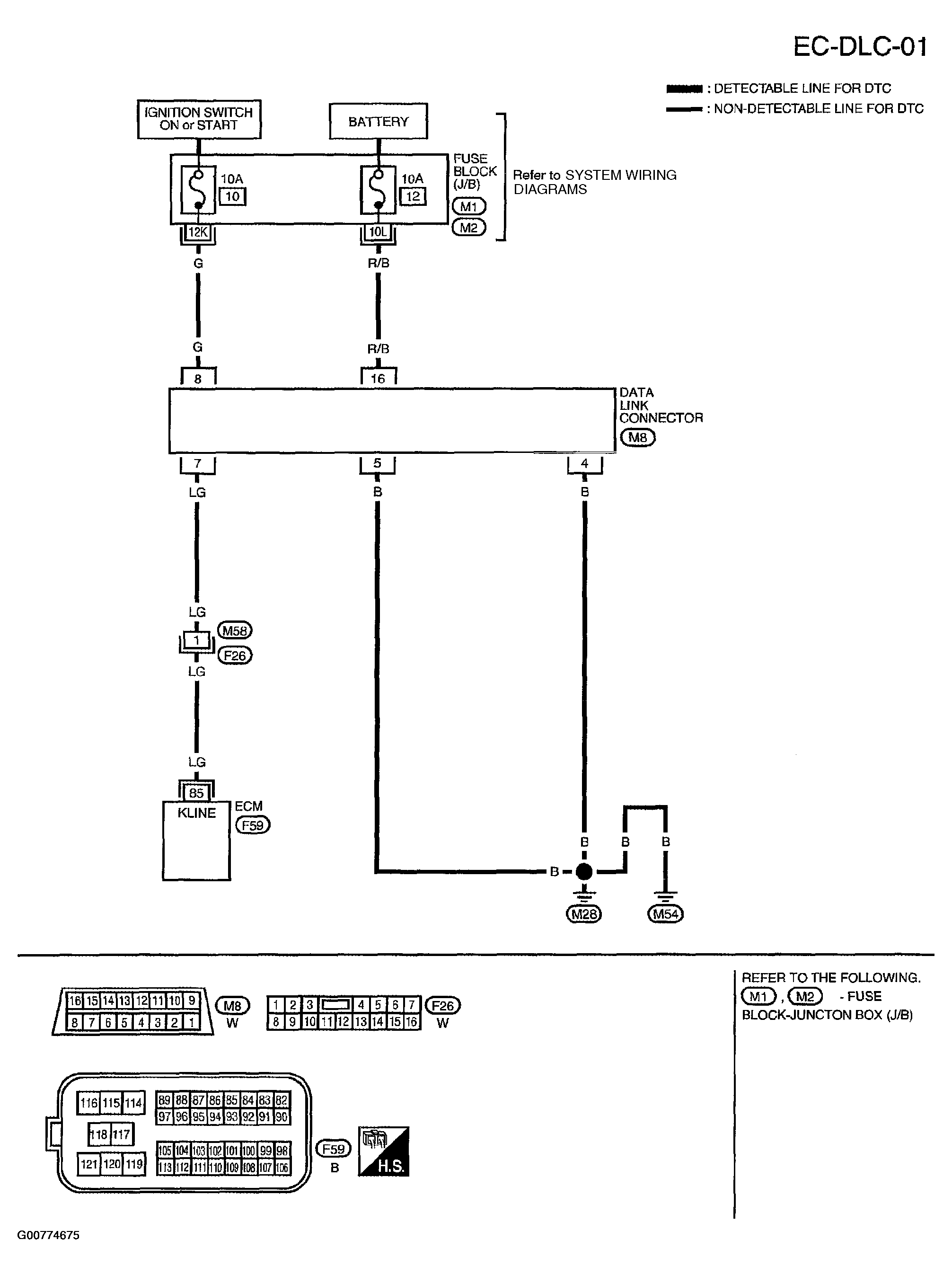

Fig 1: Wiring Diagram - Data Link Connector

G00774675

Courtesy of NISSAN MOTOR CO., U.S.A.
