Keyfob Battery and Function Check

WARNING: This page is about a different car, the 2004 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CHECK KEYFOB BATTERY
Remove battery and measure voltage across battery positive and negative terminals, (+) and (-).

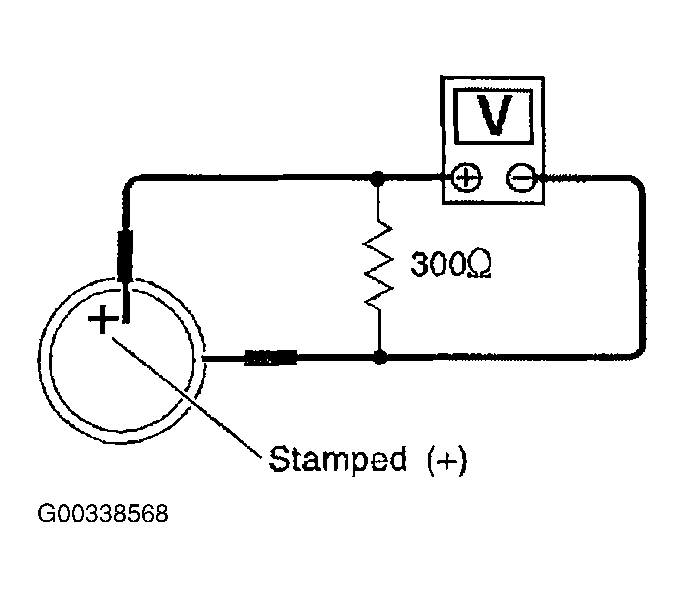

Fig 1: Measuring Voltage Across Battery Positive And Negative Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

Voltage : 2.5V - 3.0V

NOTE: Keyfob does not function if battery is not set correctly.

OK or NG
1. OK >> GO TO 2.
2. NG >> Replace battery.
CHECK KEYFOB FUNCTION
With CONSULT-II

Check keyfob function in "DATA MONITOR" mode with CONSULT-II.

When pushing each button of keyfob, the corresponding monitor item should be turned as follows .

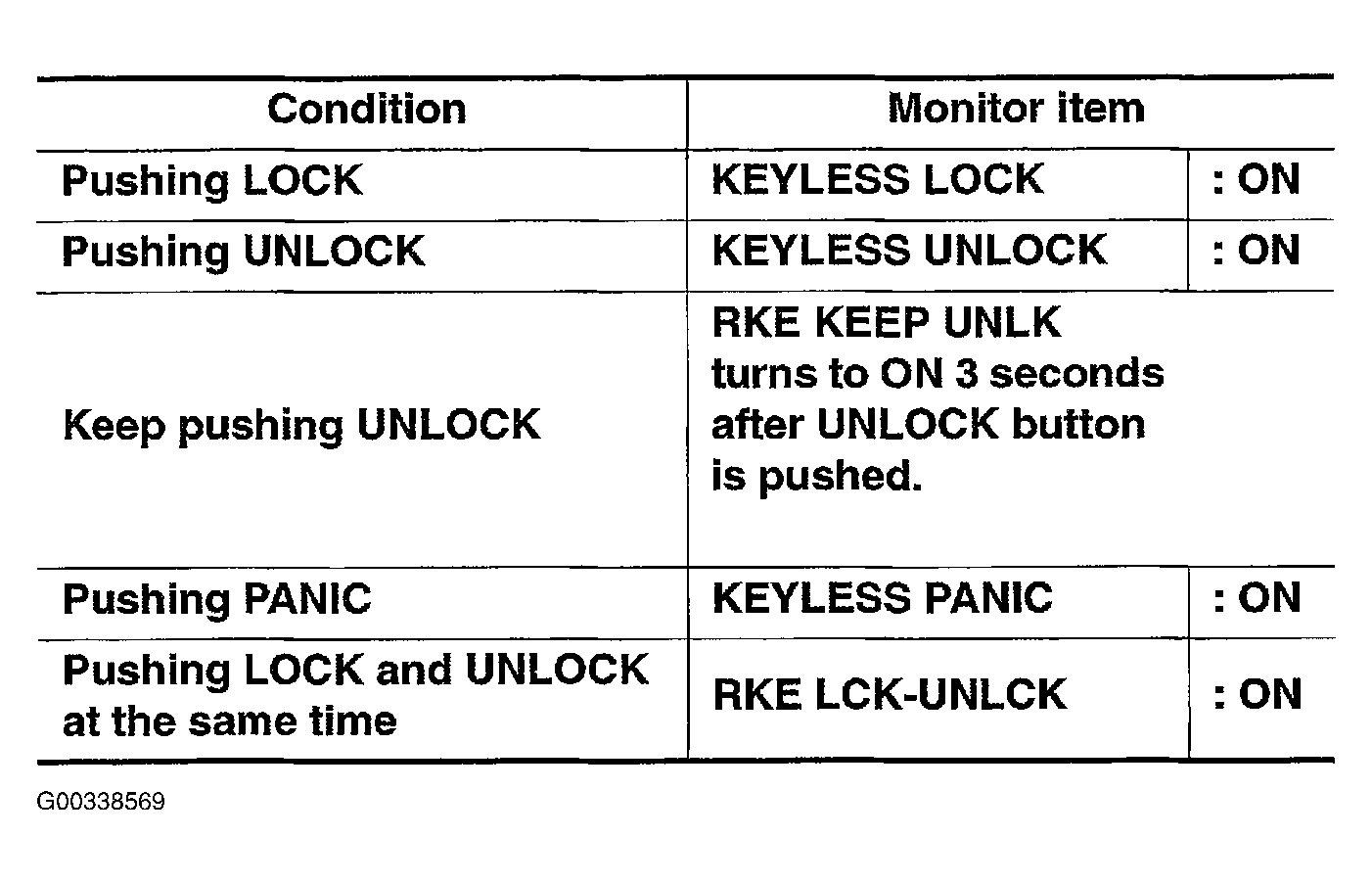

Fig 2: Checking Keyfob Condition
Courtesy of NISSAN MOTOR CO., U.S.A.

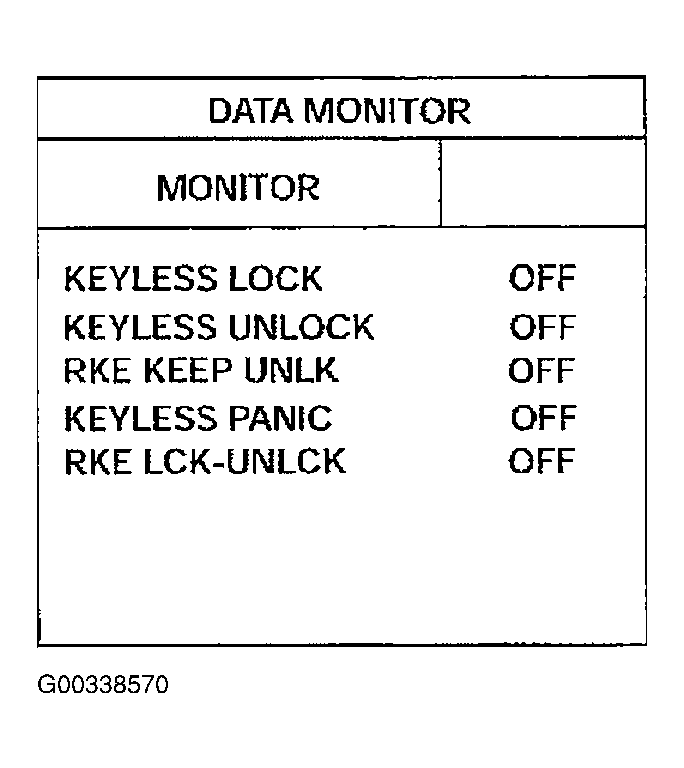

Fig 3: Checking CONSULT-II DATA MONITOR Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK >> Keyfob is OK. Further inspection is necessary. Refer to SYMPTOM CHART .
2. NG >> Replace keyfob.
