Door Switch Check

WARNING: This page is about a different car, the 2004 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DOOR SWITCHES INPUT SIGNAL

    With CONSULT-II

    Check door switches ("DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL", "DOOR SW-RR") in DATA MONITOR mode with CONSULT-II. Refer to DATA MONITOR .

    • When any doors are open :

      DOOR SW-DR :ON

      DOOR SW-AS :ON

      DOOR SW-RL :ON

      DOOR SW-RR :ON

      BACK DOOR SW :ON

    • When any doors are closed :

      DOOR SW-DR :OFF

      DOOR SW-AS :OFF

      DOOR SW-RL :OFF

      DOOR SW-RR :OFF

      BACK DOOR SW :OFF

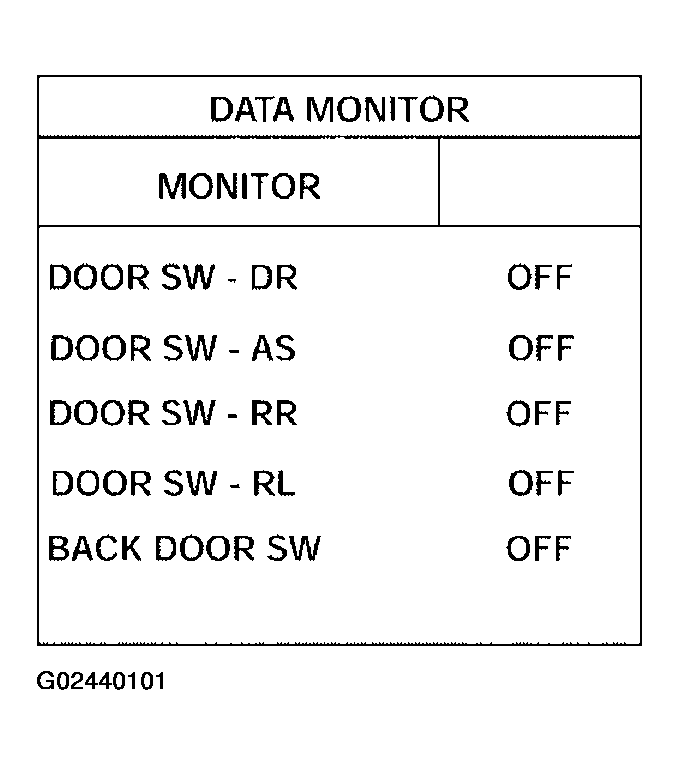

      Fig 1: Displaying CONSULT-II DATA MONITOR Screen
      G02440101Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check voltage between BCM connector M18 or M19 terminals 12, 13, 43, 47, 48 and ground.

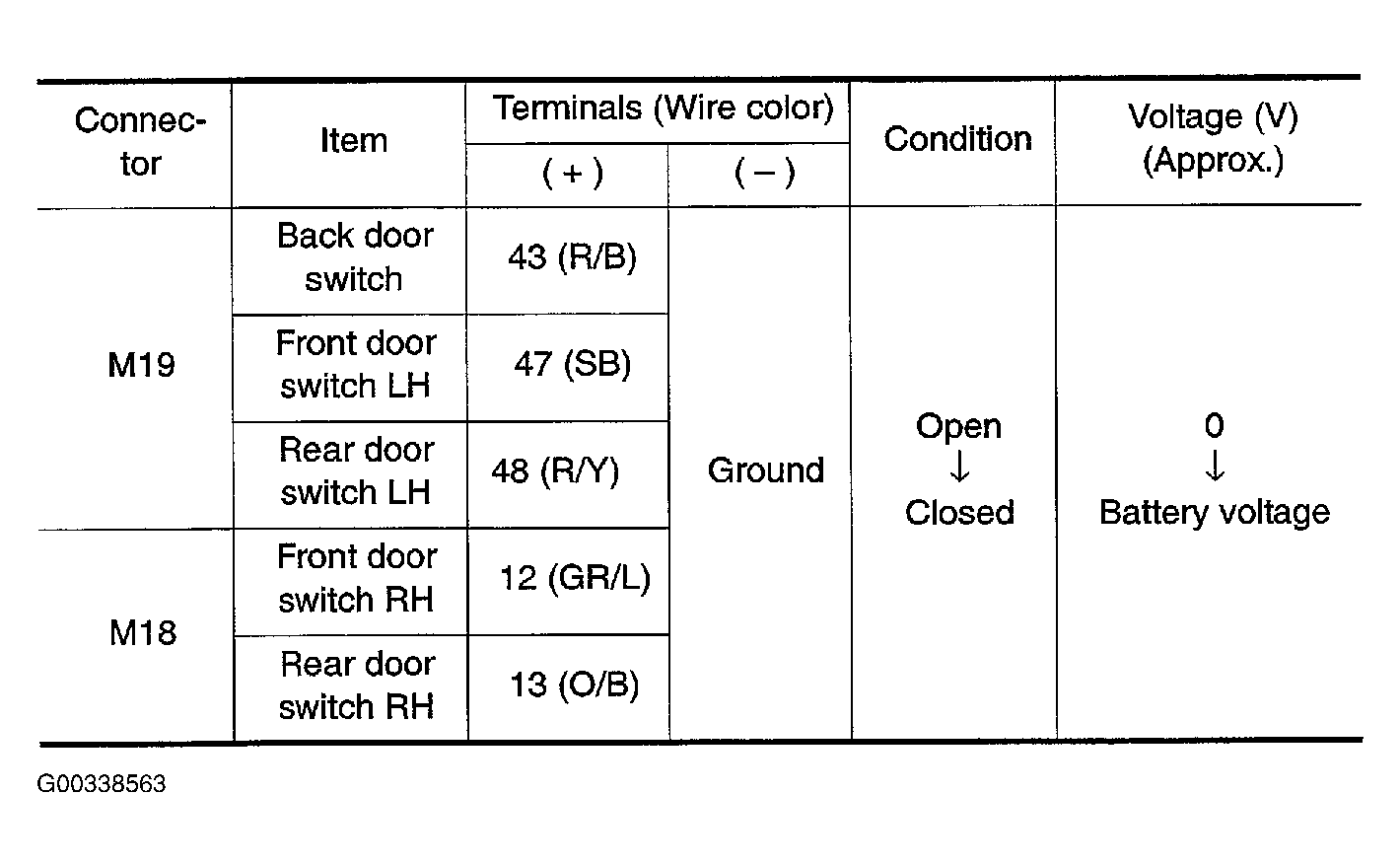

    Fig 2: Checking Connector Specifications
    G00338563Courtesy of NISSAN MOTOR CO., U.S.A.

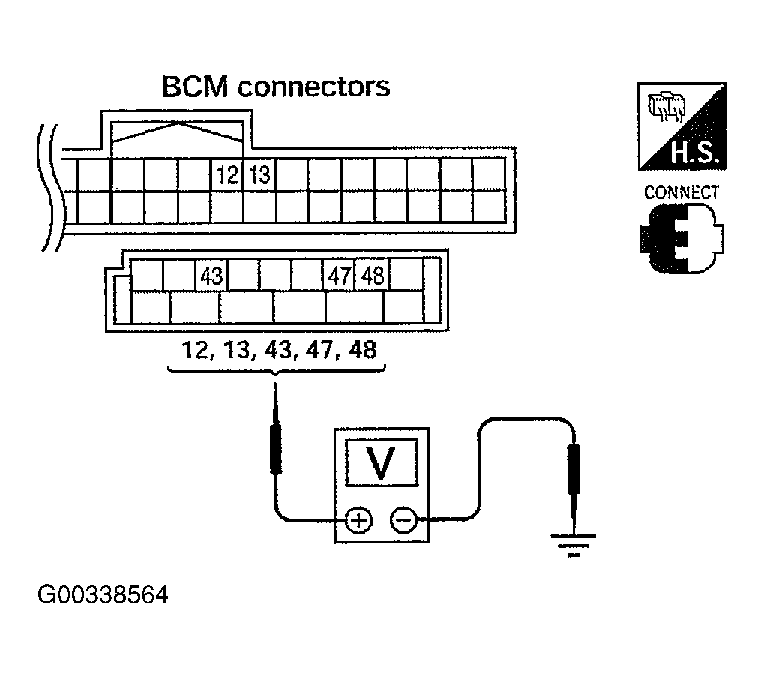

    Fig 3: Checking Voltage Between BCM Connector And Ground
    G00338564Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK >> System is OK.
    2. NG >> GO TO 2.
  2. CHECK DOOR SWITCH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect door switch and BCM.
    3. Check continuity between door switch connector B8 (Front LH), B108 (Front RH), B18 (Rear LH), B118 (Rear RH) terminal 2 or D502 (Back) terminal 3 and BCM connector M18, M19 terminals 12, 13, 43, 47 and 48.

      2 (SB) - 47 (SB) :Continuity should exist

      2 (R/L) -12 (R/L) :Continuity should exist

      2 (R/Y) - 48 (R/Y) :Continuity should exist

      2 (R/W) - 13 (R/W) :Continuity should exist

      3 (R/B) - 43 (R/B) :Continuity should exist

    4. Check continuity between door switch connector B8 (Front LH), B108 (Front RH), B18 (Rear LH), B118 (Rear RH) terminal 2 or D502 (Back) terminal 3 and ground.

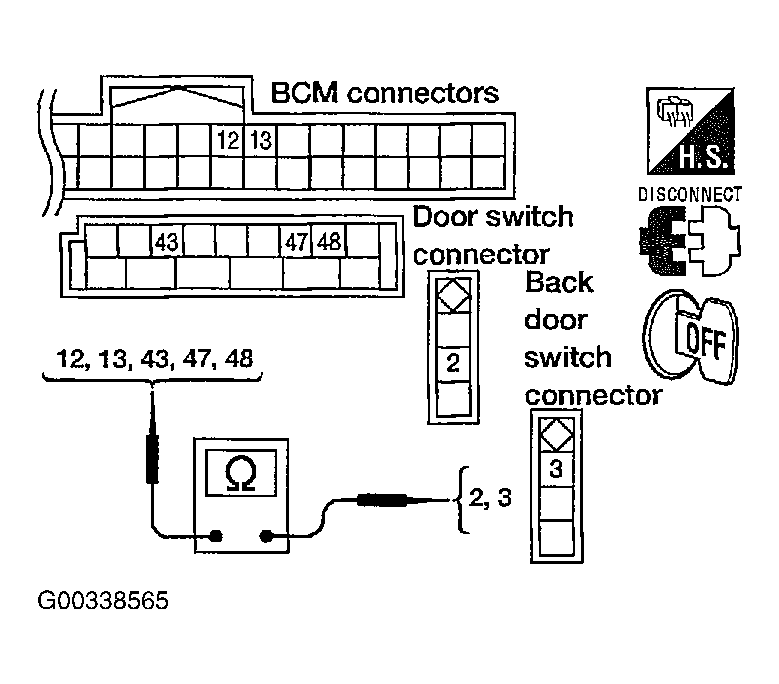

      Fig 4: Checking Door Switch Circuit
      G00338565Courtesy of NISSAN MOTOR CO., U.S.A.

      2 (SB, R/L, R/Y or R/W) Ground - :Continuity should not exist

      3 (R/B) - Ground :Continuity should not exist

    OK or NG

    1. OK >> GO TO 3.
    2. NG >> Repair or replace harness.
  3. CHECK DOOR SWITCHES
    • Disconnect door switch harness.
    • Check continuity between door switch connector terminals.

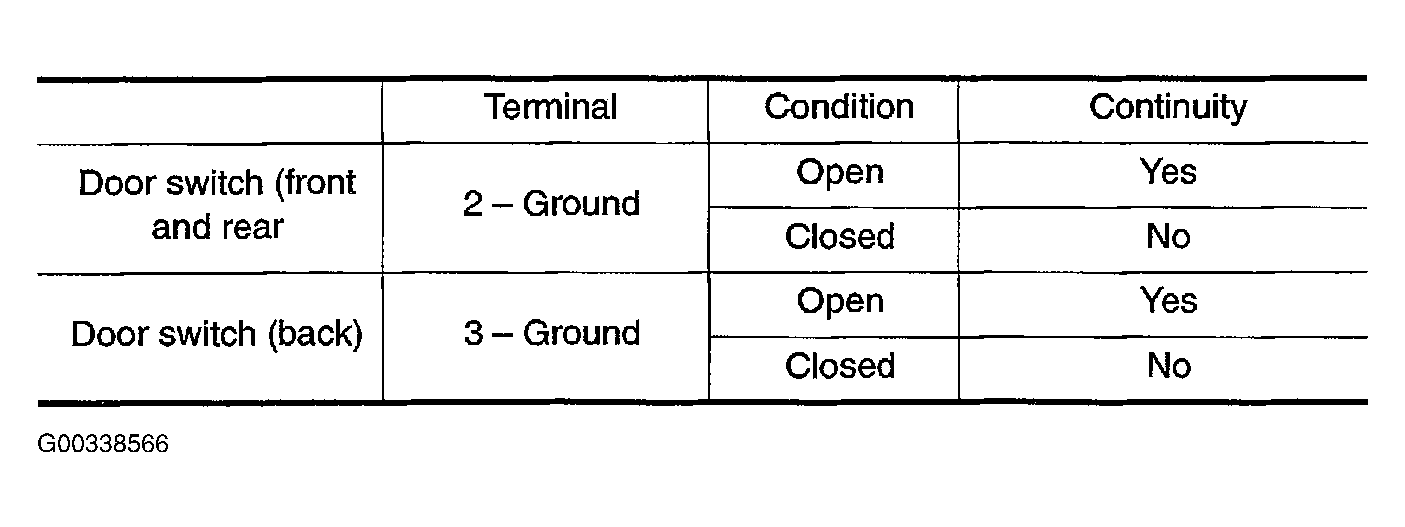

      Fig 5: Checking Terminal Conditions
      G00338566Courtesy of NISSAN MOTOR CO., U.S.A.

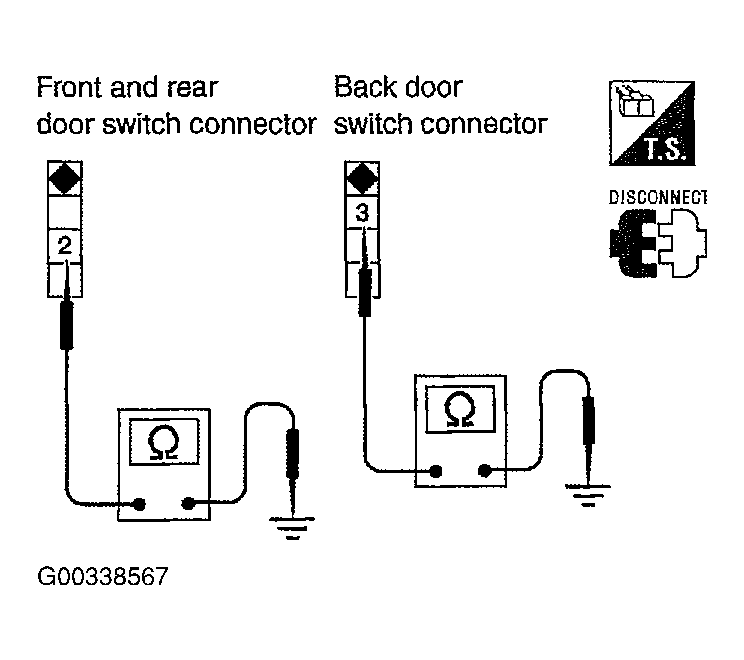

      Fig 6: Checking Continuity Between Door Switch Connector Terminals
      G00338567Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK >> Check door switch case ground condition (front and rear door) or ground circuit (back door).
    2. NG >> Replace door switch.
