Consult-II Function Application Table

CAUTION:
  • "FUNCTION TEST" shall not be used for diagnosis. For details, refer to separately supplied "CONSULT-II Instruction Manual (FUNCTION TEST)".

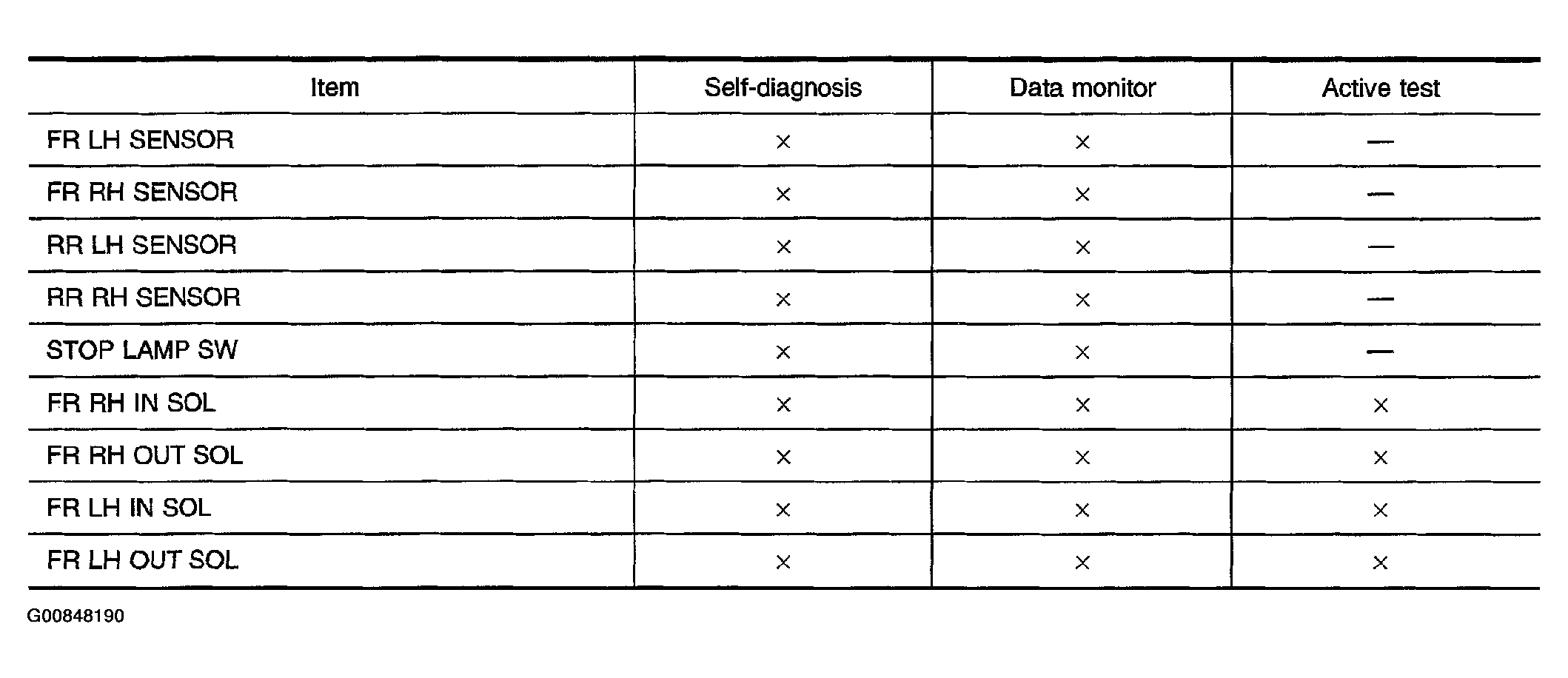

Fig 1: CONSULT-II Function Application Table (1 Of 2)
G00848190Courtesy of NISSAN MOTOR CO., U.S.A.

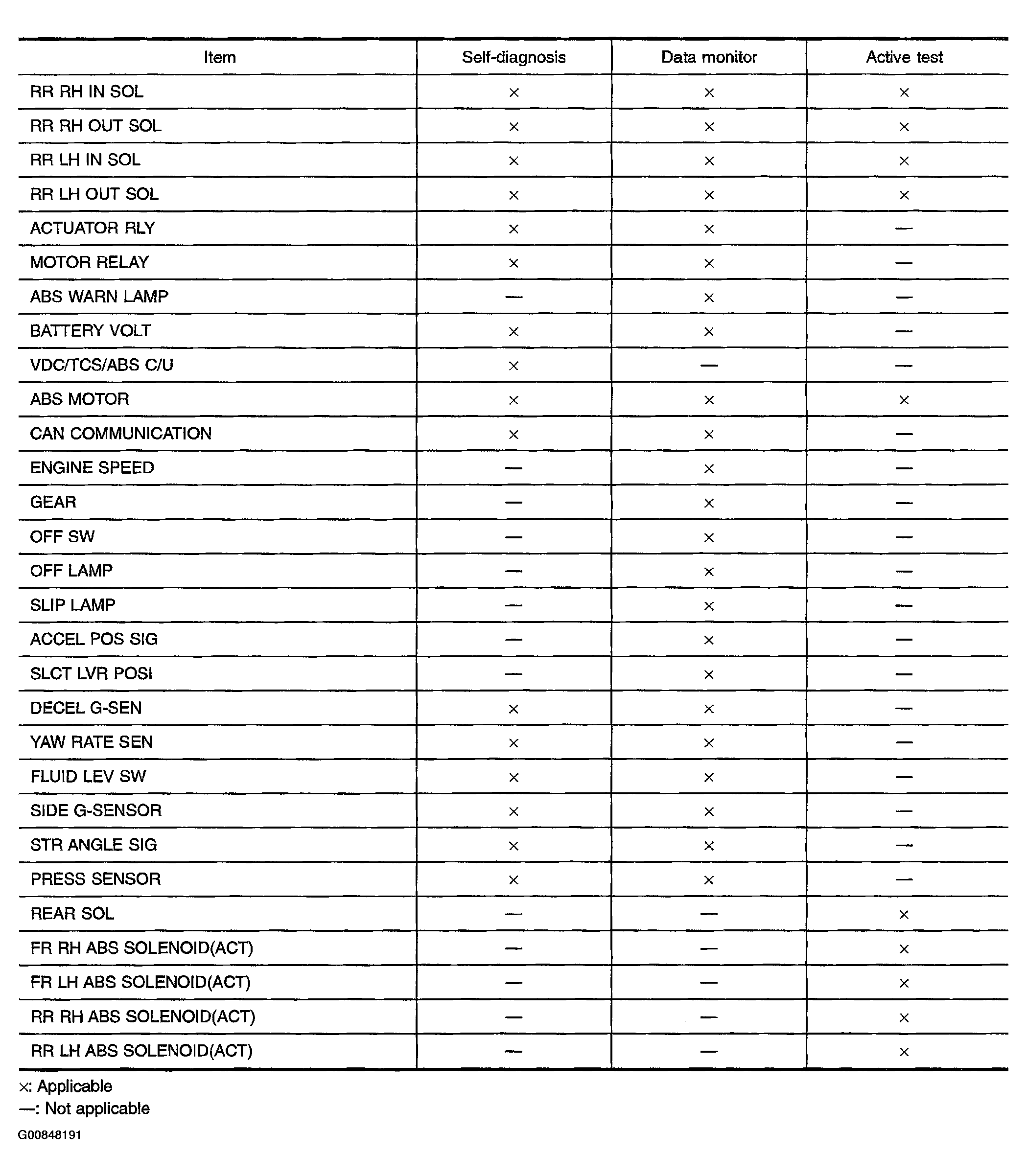

Fig 2: CONSULT-II Function Application Table (2 Of 2)
G00848191Courtesy of NISSAN MOTOR CO., U.S.A.
