Front Sensor Rotor: Installation

Install the sensor rotor using suitable drift and press.

• Always replace sensor rotor with new one.
• Pay attention to the direction of front sensor rotor as shown in figure.

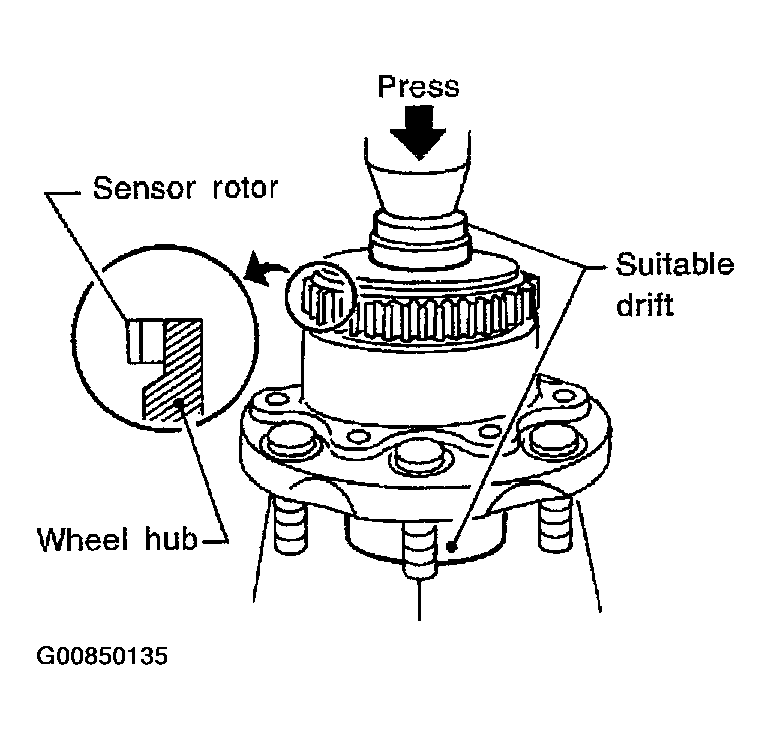

  Fig 1: Installing Front Sensor Rotor

  Courtesy of NISSAN MOTOR CO., U.S.A.
