Adjustment of A/T Position

  1. Loosen nut of control cable.

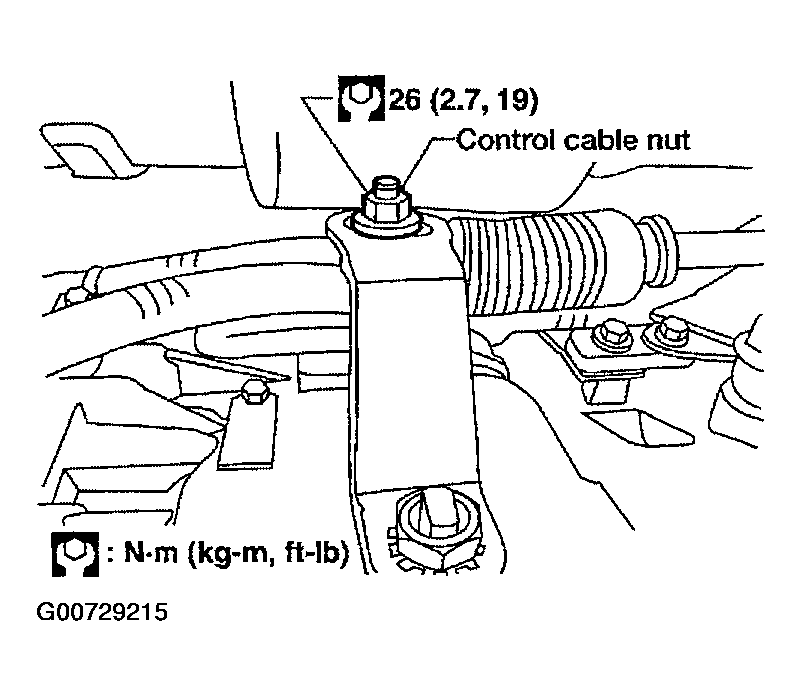

    Fig 1: Locating Control Cable Nut
    G00729215Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Place PNP switch and selector lever in "P" position.
  3. While pressing lower lever toward rear of vehicle (in P position direction), tighten nut to specified torque.
