With Consult-II

  1. Turn ignition switch "ON". (Do not start engine).
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
  3. Start engine.
  4. Run engine for at least 2 consecutive seconds at idle speed.
  5. If DTC is detected, go to "Diagnostic Procedure ".

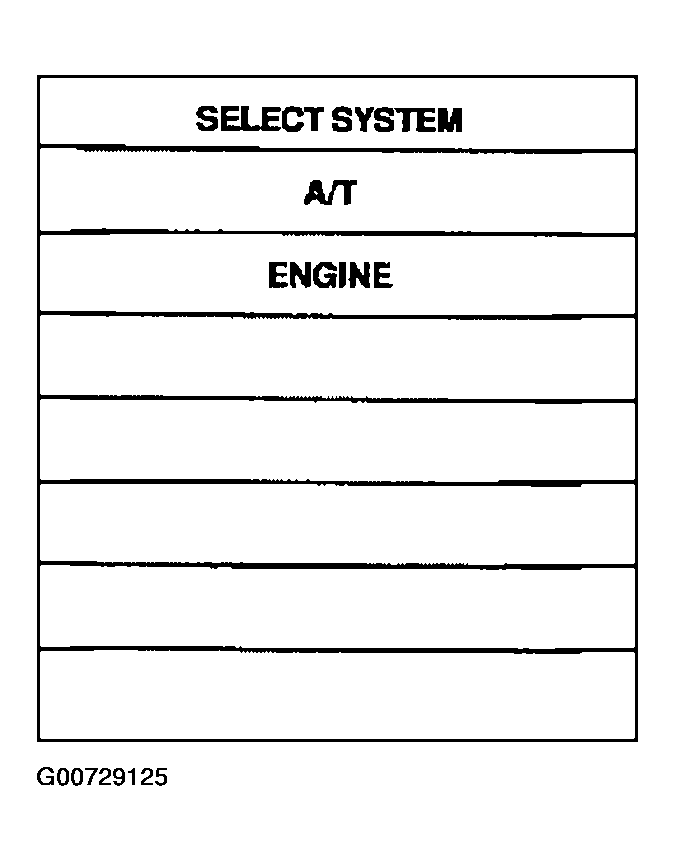

Fig 1: CONSULT-II Display Screen
G00729125Courtesy of NISSAN MOTOR CO., U.S.A.
