A/T Shift Lock System
>>
Component Inspection
>>
Key Lock Solenoid
>>
Key unlock
Key unlock
Check operation by applying battery voltage to key switch and key lock solenoid.
CAUTION:
Be careful not to cause burnout of the harness.

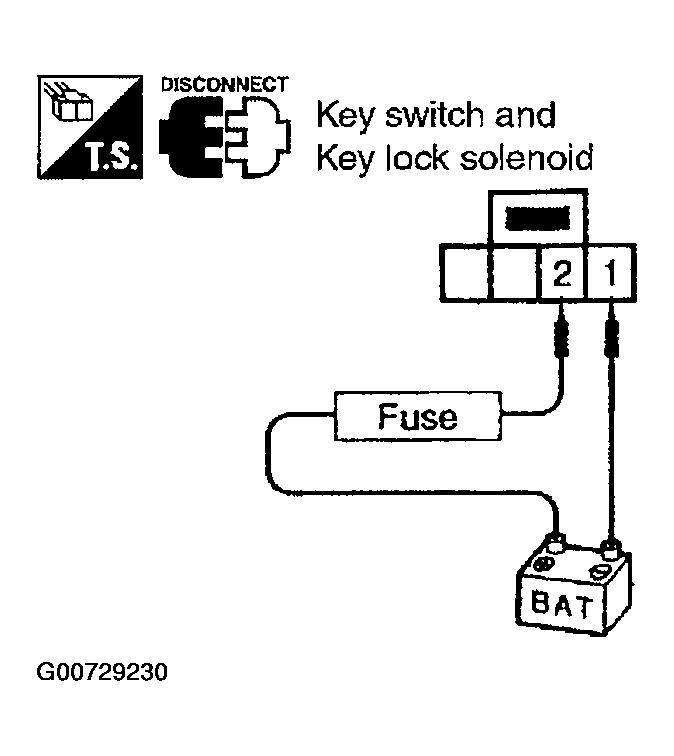

Fig 1: Key Unlock Solenoid Component Inspection (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

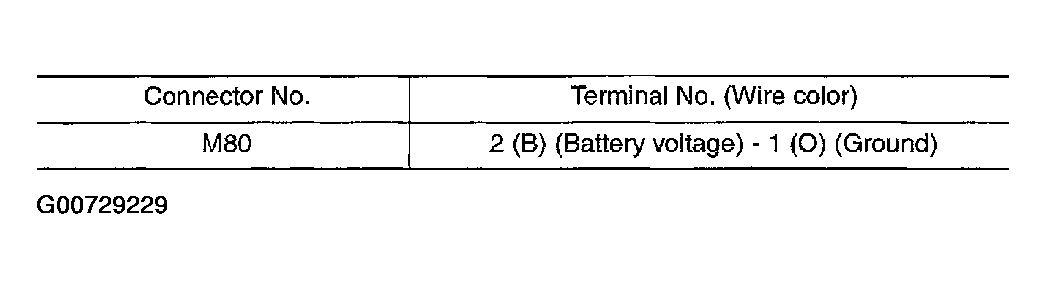

Fig 2: Key Unlock Solenoid Component Inspection (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
