Nissan-Datsun
>>
2004
>>
Armada LE, RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Trouble Diagnosis
>>
Trouble Diagnosis Introduction
>>
Description for Work Flow
Description for Work Flow

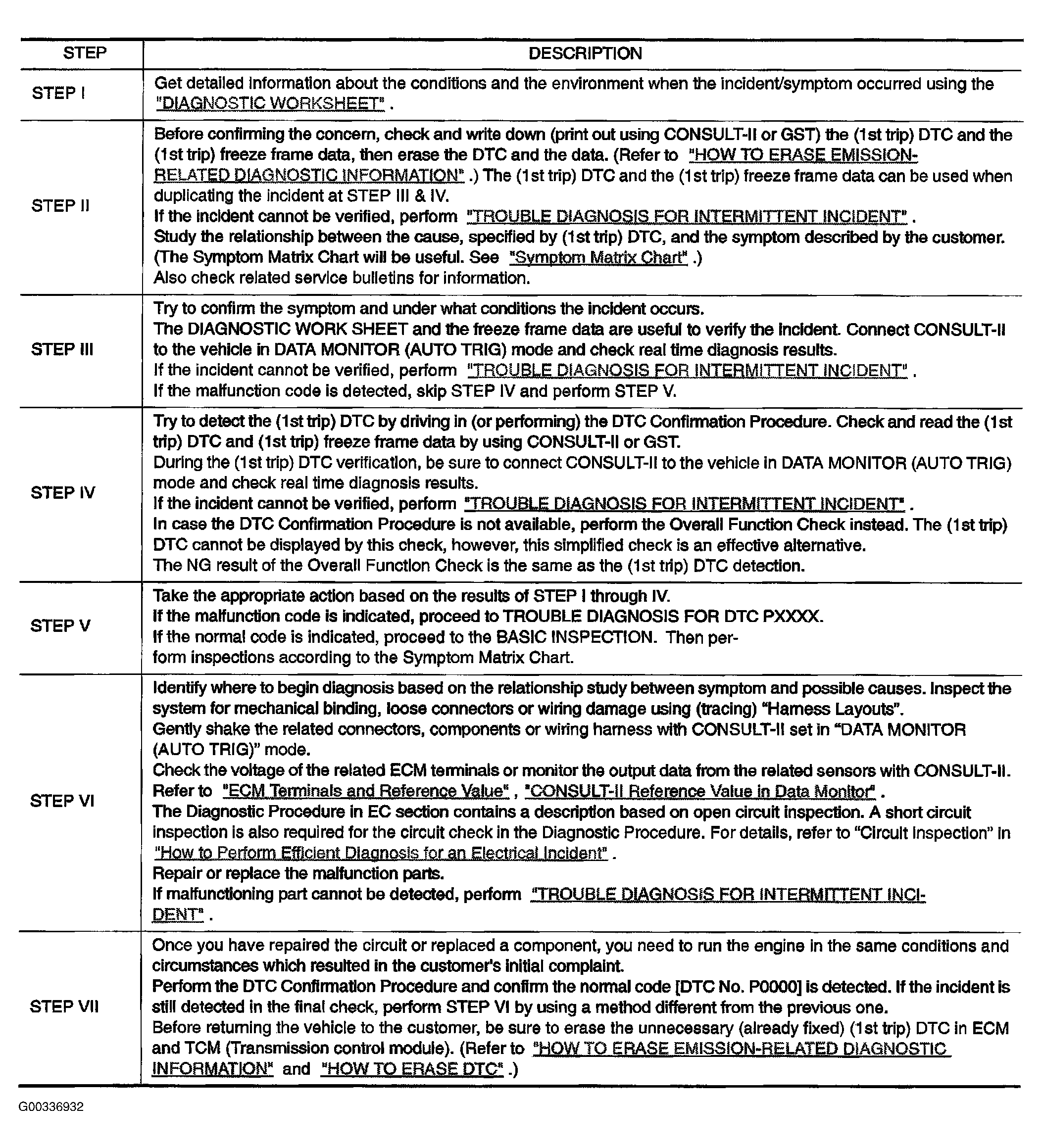

Fig 1: Description for Work Flow
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
