Without CONSULT-II

1. Turn ignition switch to "ON" position.
2. Operate the 4WD shift switch and check continuity between the following terminals. See Fig 1 and Fig 2 .

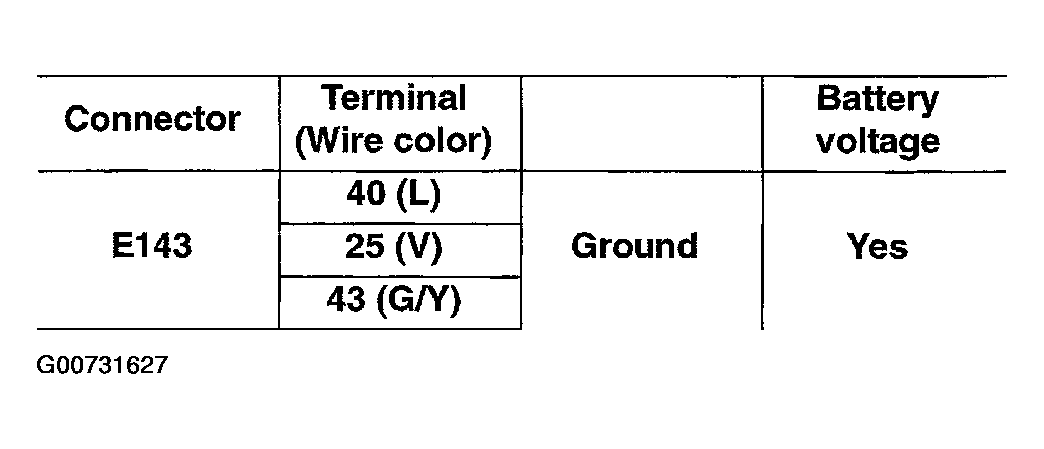

Fig 1: Checking Switch Power Source

Courtesy of NISSAN MOTOR CO., U.S.A.

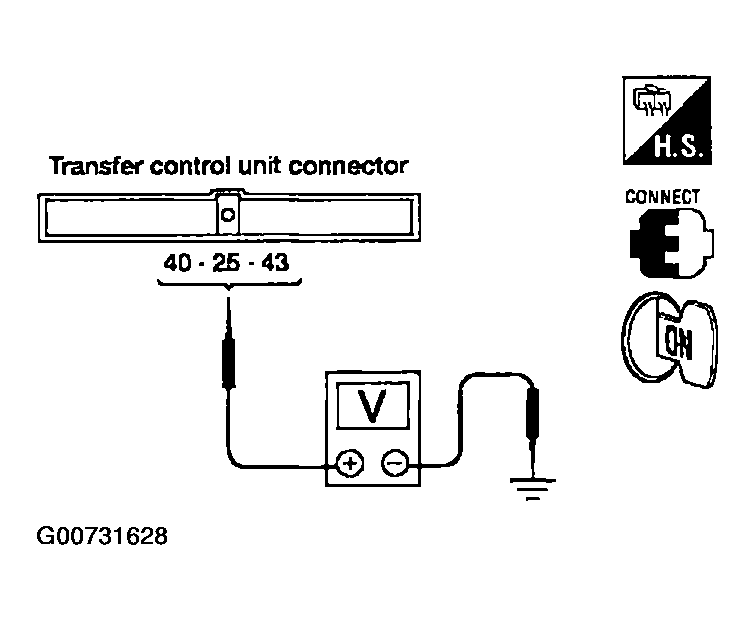

Fig 2: Checking Switch Power Source

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK >> Inspection End.
2. NG >> GO TO 7.
