With CONSULT-II

1. Select "ECU INPUT SIGNALS" in Data Monitor.
2. Read out the ON/OFF status of "ATP SW", "NEUTRAL SW" and "WAIT DETCT SW". Refer to "REFERENCE VALUE IN DATA MONITOR MODE ".

OK or NG

1. OK >> GO TO 7 .
2. NG >> Check the following.

• Harness continuity between neutral-4LO switch, ATP switch, wait detection switch harness connectors and transfer control unit
• Continuity between neutral-4LO switch, ATP switch, wait detection switch harness connectors and ground

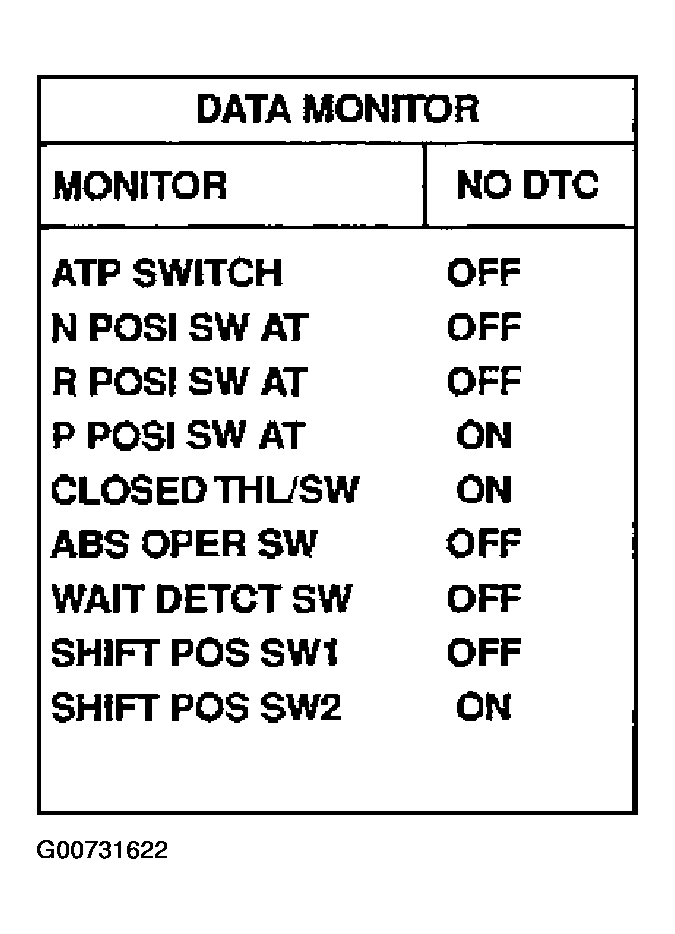

Fig 1: CONSULT-II Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
