Stop Lamp Switch (For M/T Models)

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.
    CONTINUITY SPECIFICATIONS

    Condition Continuity
    When brake pedal is fully released. Should not exist.
    When brake pedal is depressed. Should exist.

    If NG, adjust stop lamp switch installation, refer to ADJUSTMENTS , and perform step 3 again.

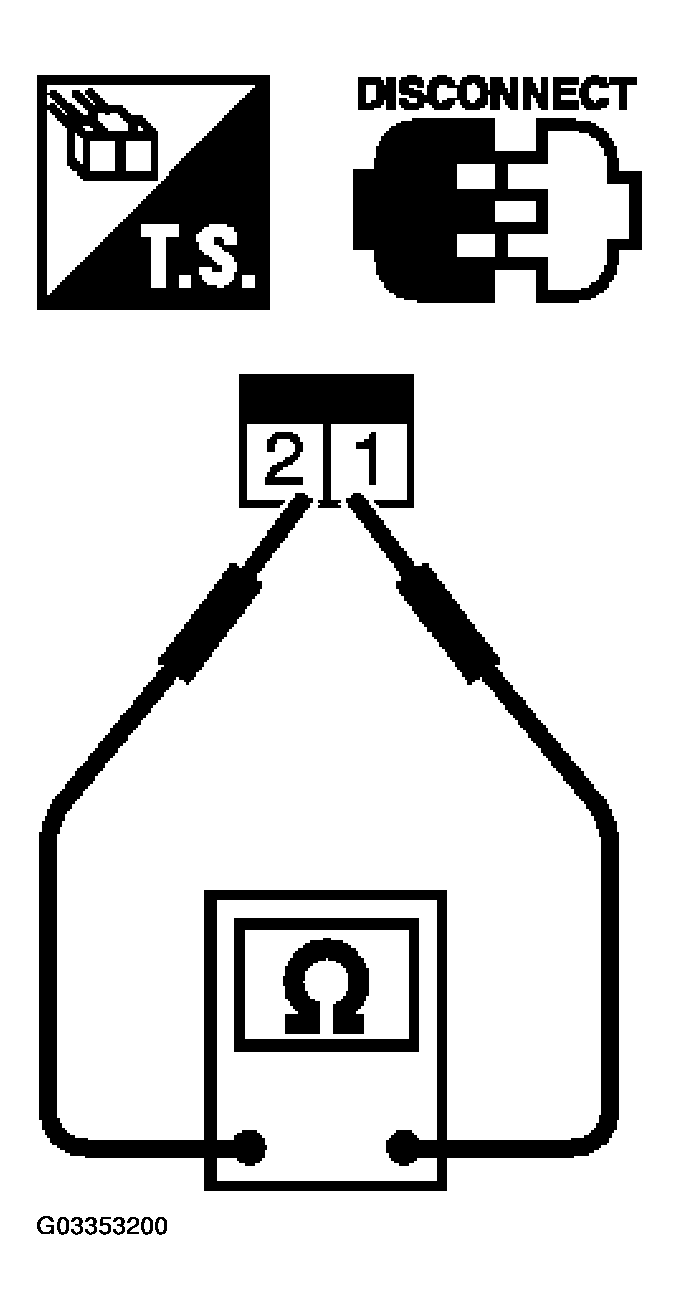

    Fig 1: Checking Harness Continuity Between Stop Lamp Switch Terminals 1 And 2
    G03353200Courtesy of NISSAN MOTOR CO., U.S.A.
