Operation Procedure

Turn ignition switch OFF.
Connect CONSULT-II to data link connector.

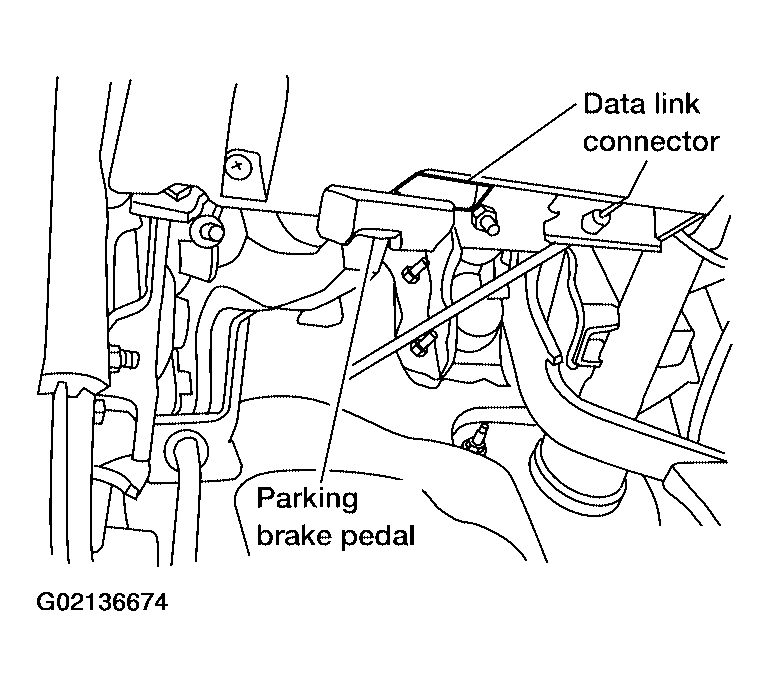

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START" on display.
Touch "ABS" on display.

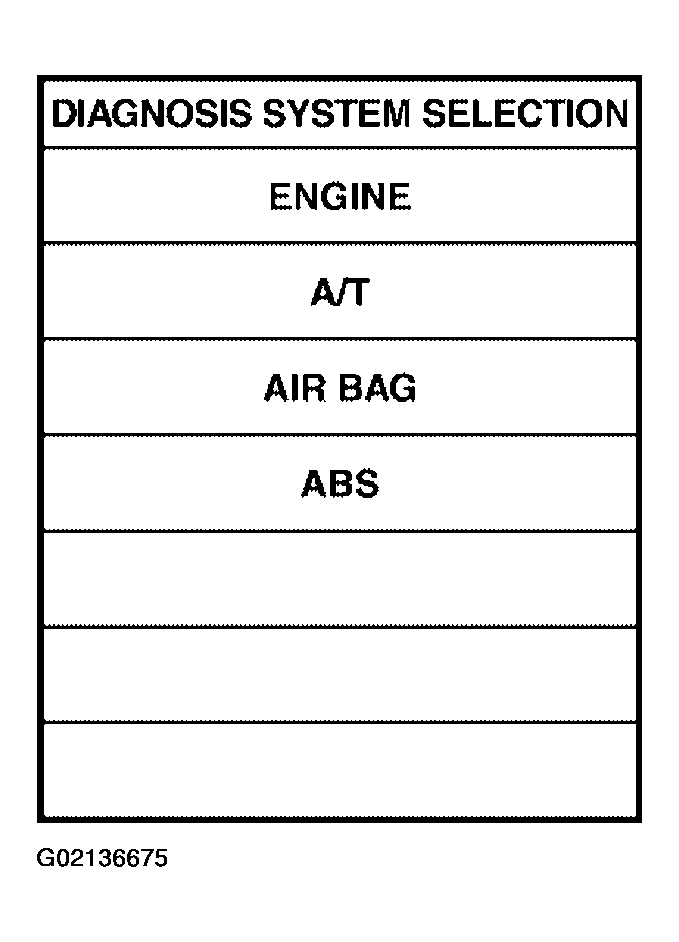

Fig 2: Consult II ABS Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DATA MONITOR".

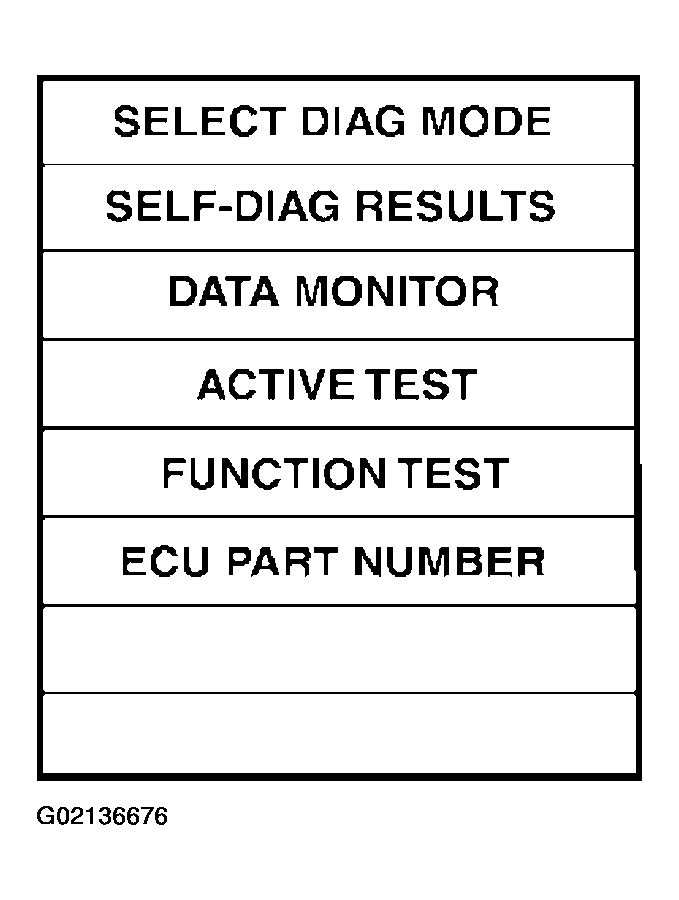

Fig 3: Consult II Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Return to monitor item selection screen and touch any of "ECU INPUT SIGNALS", "MAIN SIGNALS", "CAN DIAG SUPPORT MNTR" or "SELECTION FROM MENU", Refer to "DISPLAY ITEM LIST ".
Touch "START".
Screen of data monitor is displayed.

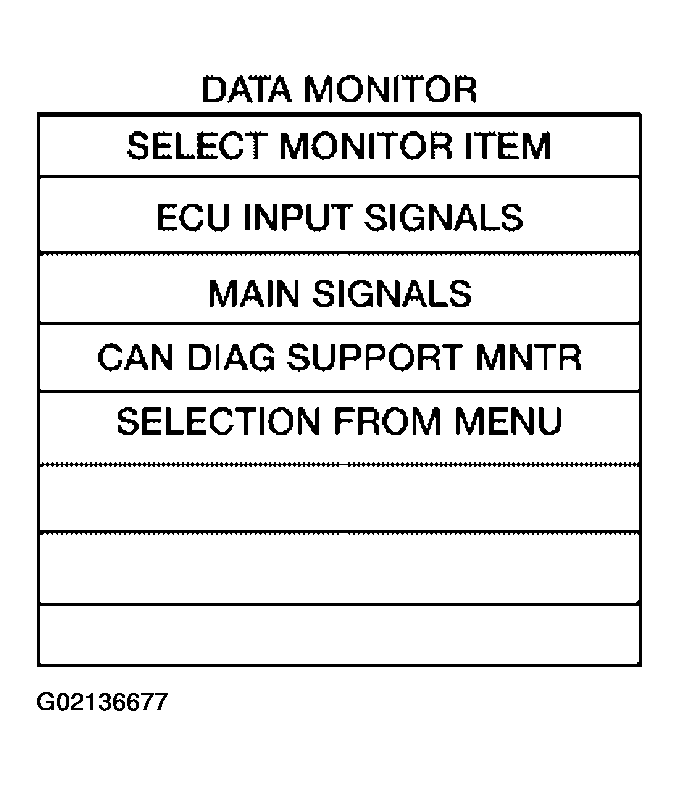

Fig 4: Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.
