Removal and Installation of Front Tweeter

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tweeter grille.
  2. Remove push pins.
  3. Remove tweeter and disconnect connector.
  4. Installation is in the reverse order of removal.

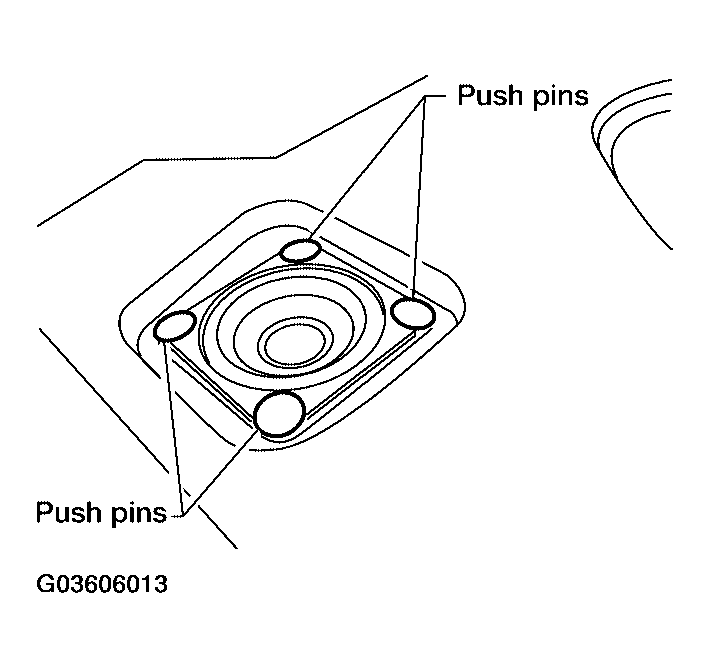

    Fig 1: Removing Push Pins Of Front Tweeter
    G03606013Courtesy of NISSAN MOTOR CO., U.S.A.
