Removal and Installation for Audio Unit

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable.
  2. Remove cluster lid C. Refer to "CLUSTER LID C ".
  3. Using power tool, remove the four audio unit screws.
  4. Pull out audio unit and disconnect connectors.
  5. Installation is in the reverse order of removal.

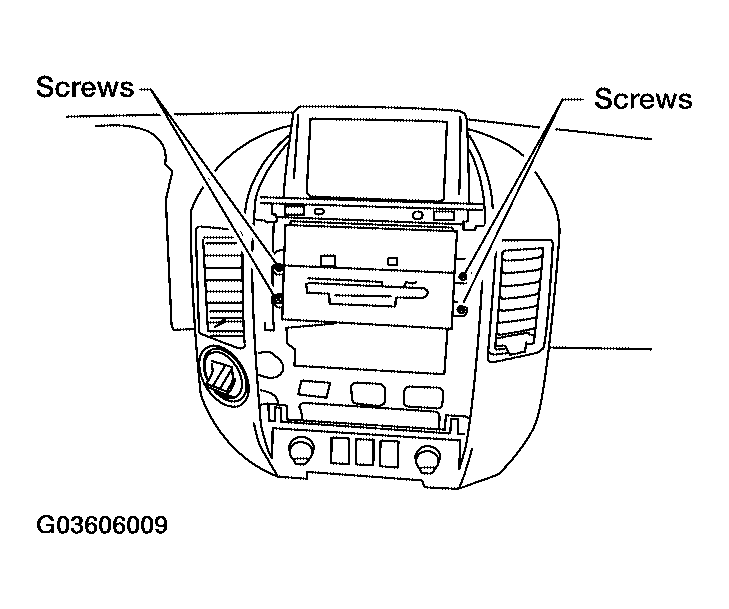

    Fig 1: Removing Audio Unit Screws
    G03606009Courtesy of NISSAN MOTOR CO., U.S.A.
