Engine Controls - Self-Diagnostics (Qr25DE)
>>
Diagnostic Tests
>>
DTC P1225: Closed Throttle Position Learning Performance Problem
>>
Diagnostic Procedure
Diagnostic Procedure
For diagnostic procedure, see
Fig 1
.

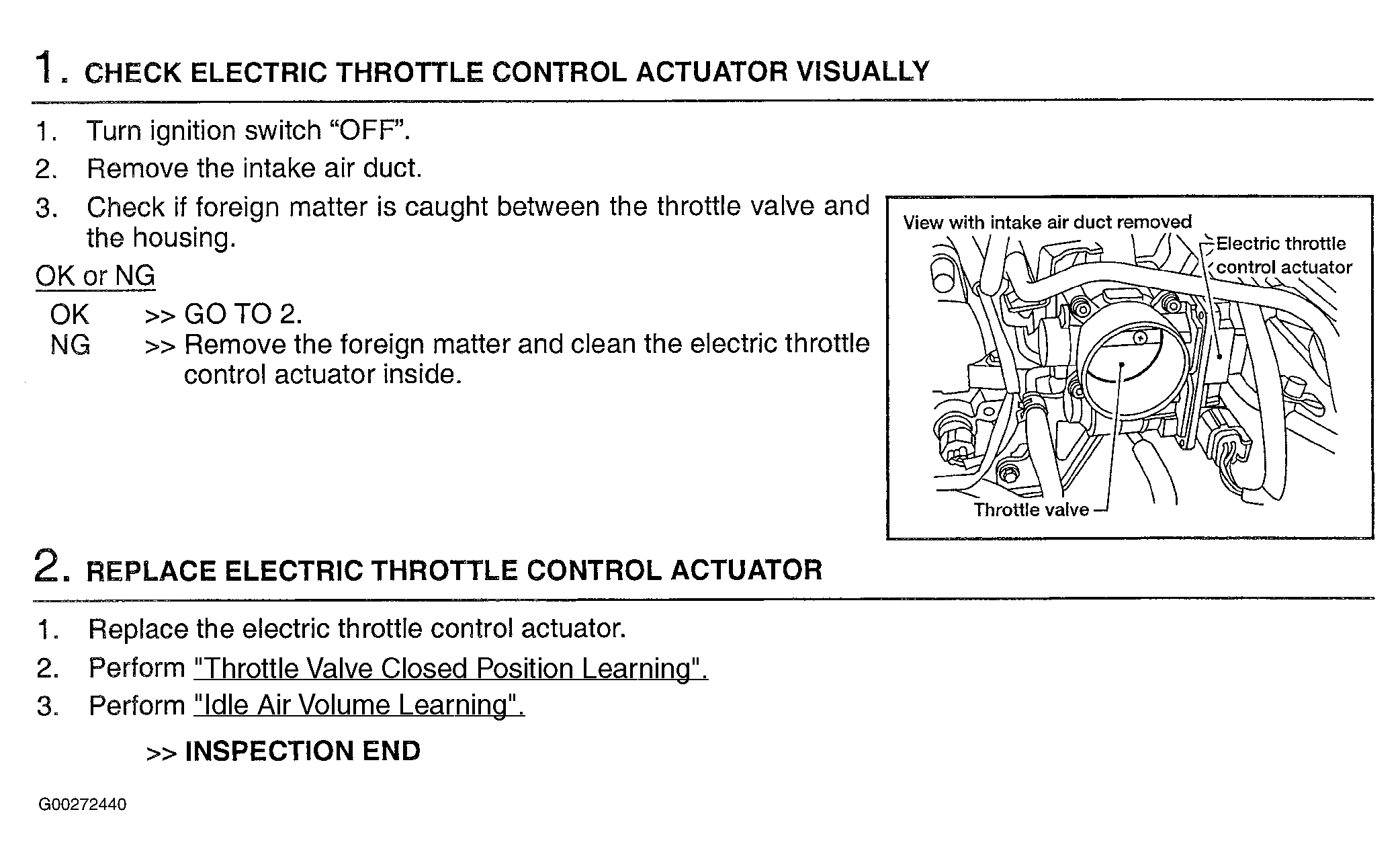

Fig 1: DTC P1225 Diagnostic Procedure
Courtesy of NISSAN MOTOR CO., U.S.A.
