TCM Terminals And Reference Value

Remarks: Specification data are reference values.

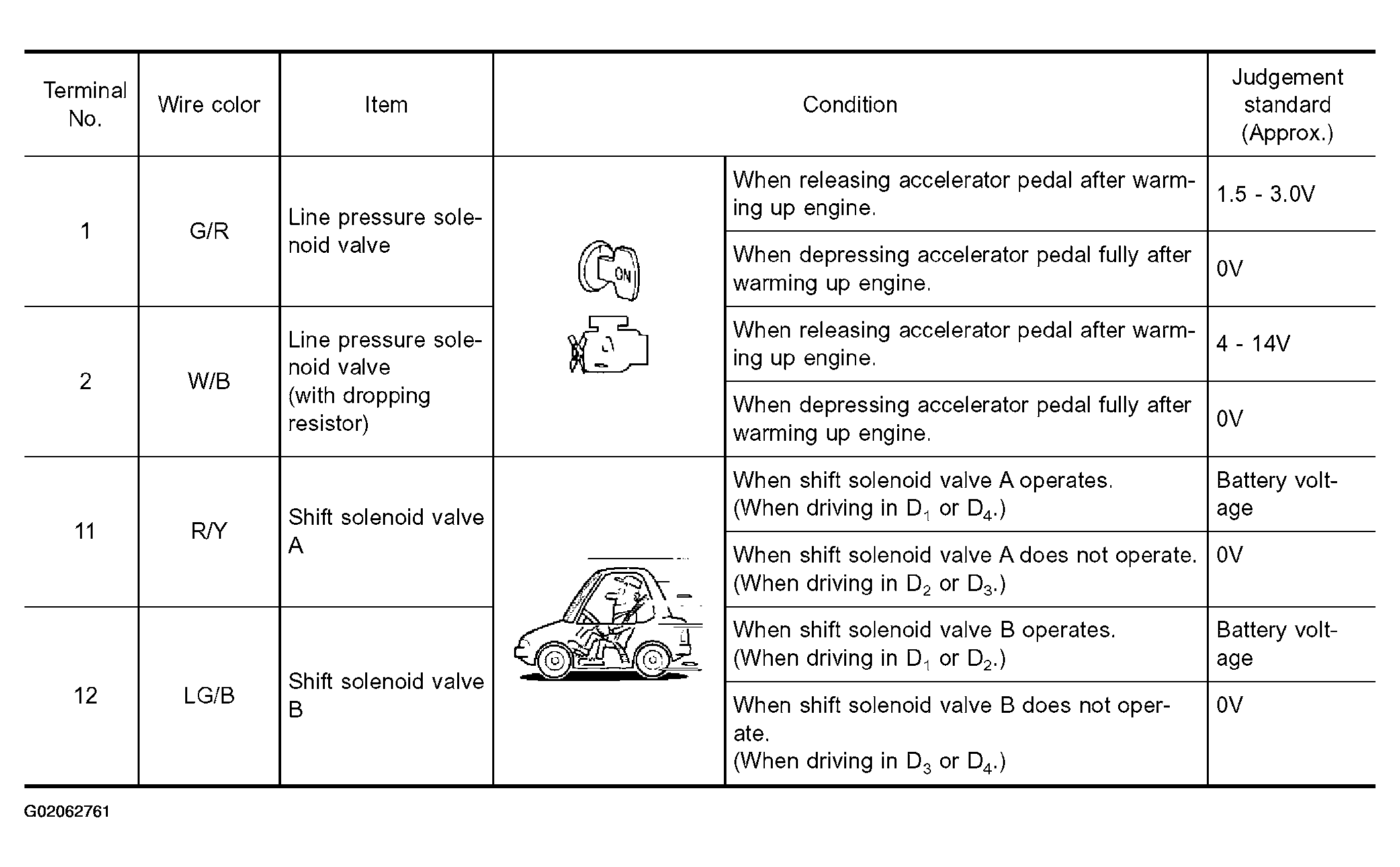

Fig 1: TCM Terminals And Reference Value Judgement Table

G02062761

Courtesy of NISSAN MOTOR CO., U.S.A.
