DTC P0720: Vehicle Speed Sensor.A/T (Revolution Sensor): Description: Notes

The revolution sensor detects the revolution of the idler gear parking pawl lock gear and emits a pulse signal. The pulse signal is sent to the TCM which converts it into vehicle speed.

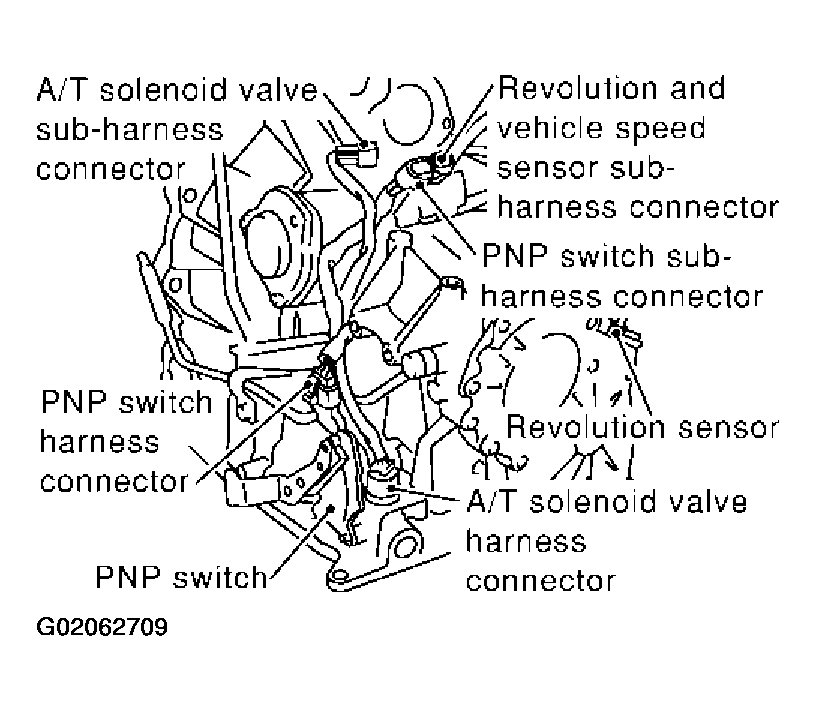

Fig 1: Identifying Revolution Sensor
G02062709Courtesy of NISSAN MOTOR CO., U.S.A.
