Traction Control System
>>
Description
>>
ABS Hydraulic Circuit
ABS Hydraulic Circuit

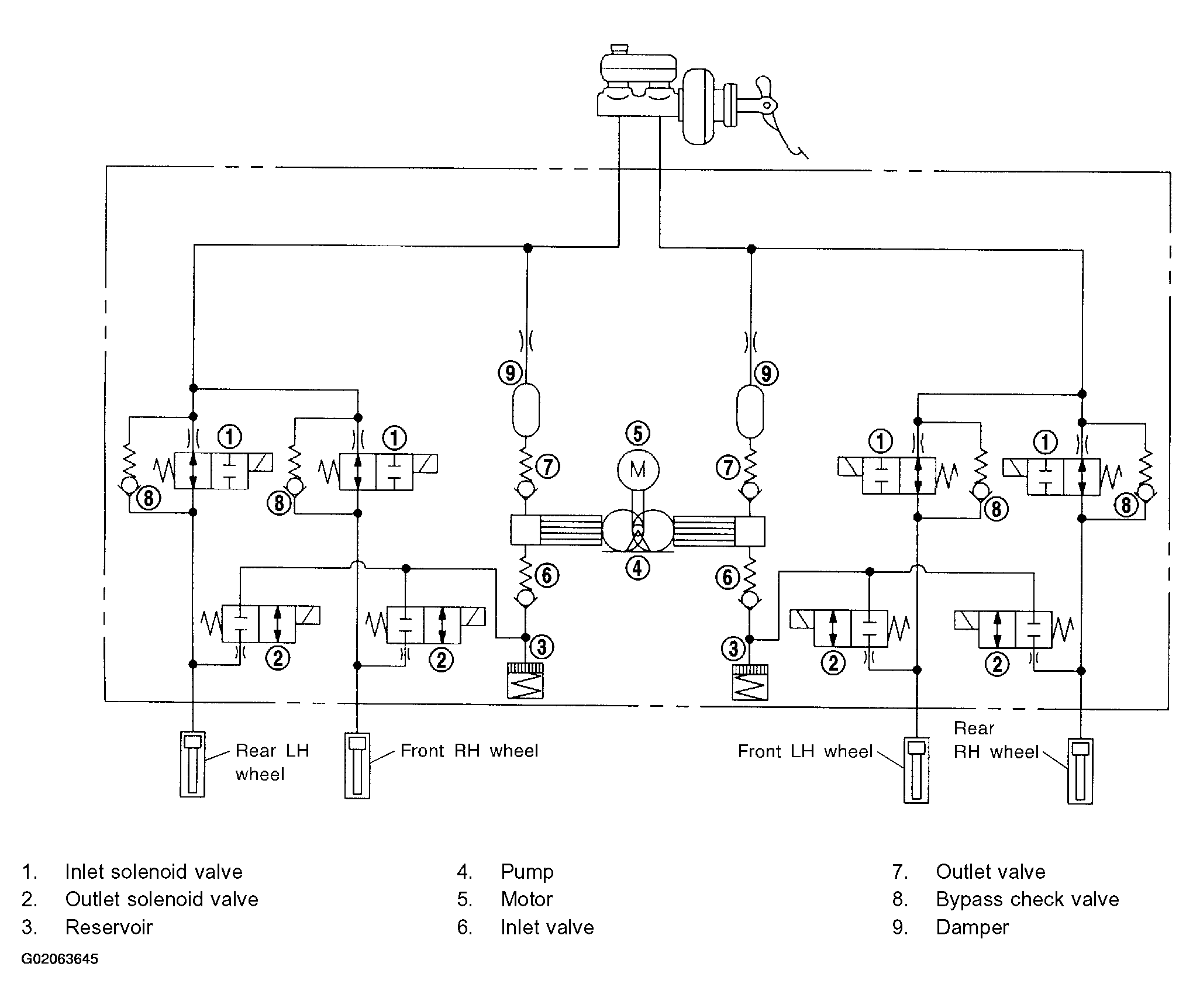

Fig 1: ABS Hydraulic Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
