Fuel Tank: Installation
To install, reverse the removal procedure. Connect the quick connector as follows:
- Align mating marks on tubes and connectors for correct installation.
- Be sure that the connecting portion of the tube and the quick connectors is clean and smooth.
- Align push in tabs with retainer openings.

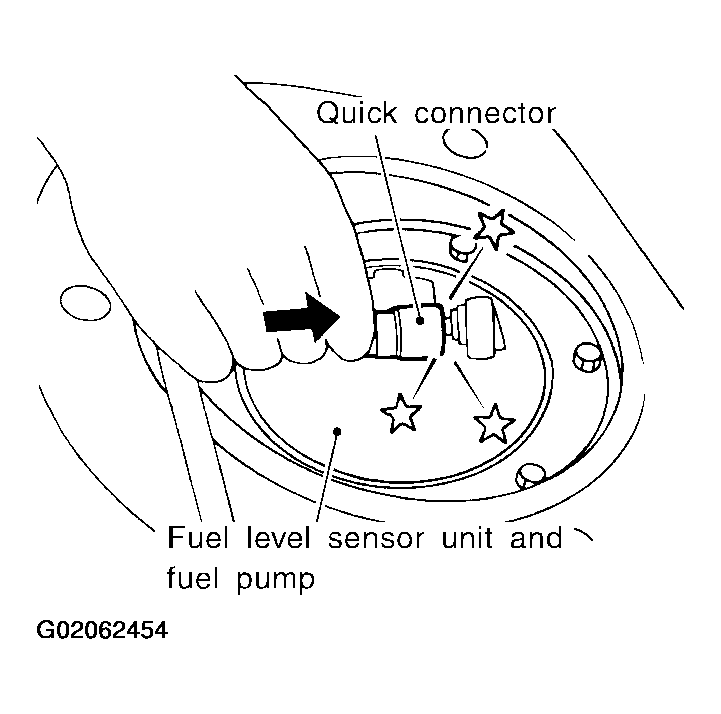

- Insert tube into the center of the connector until you hear a click.
After connecting quick connector, make sure the connection is firmly made using the following method.

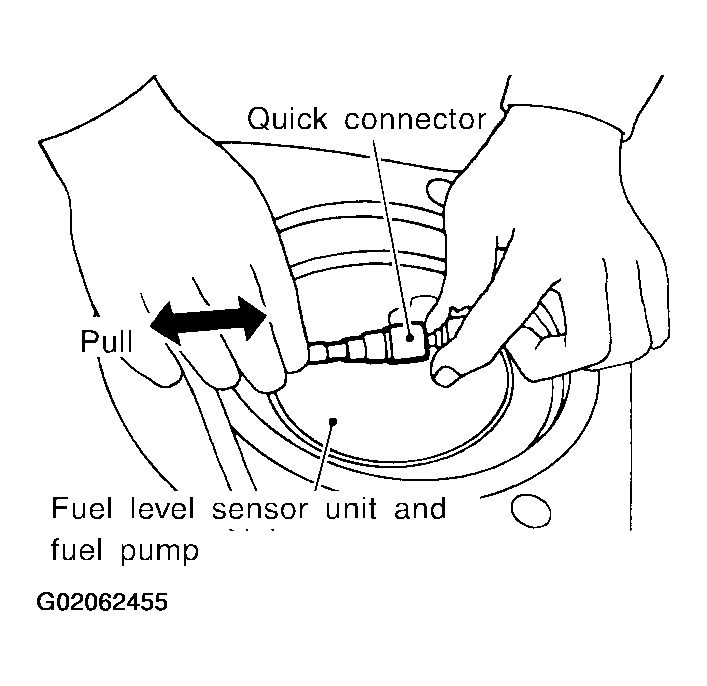

- Pull on the fuel tube and connector to make sure they are firmly connected.
Make sure that there are no leakage at fuel line connections as follows.
- Apply fuel pressure to fuel lines with ignition switch turned ON (with engine stopped). Then check that there are no leaks.
- Start the engine, increase engine speed and verify that there are no leaks again.
