Starter Interrupt System Check

WARNING: This page is about a different car, the 2002 Nissan Xterra and 2002 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For vehicle security relay testing, see VEHICLE SECURITY RELAY under COMPONENT TESTS.

For starter interrupt system check, see Fig 1 -Fig 2 .

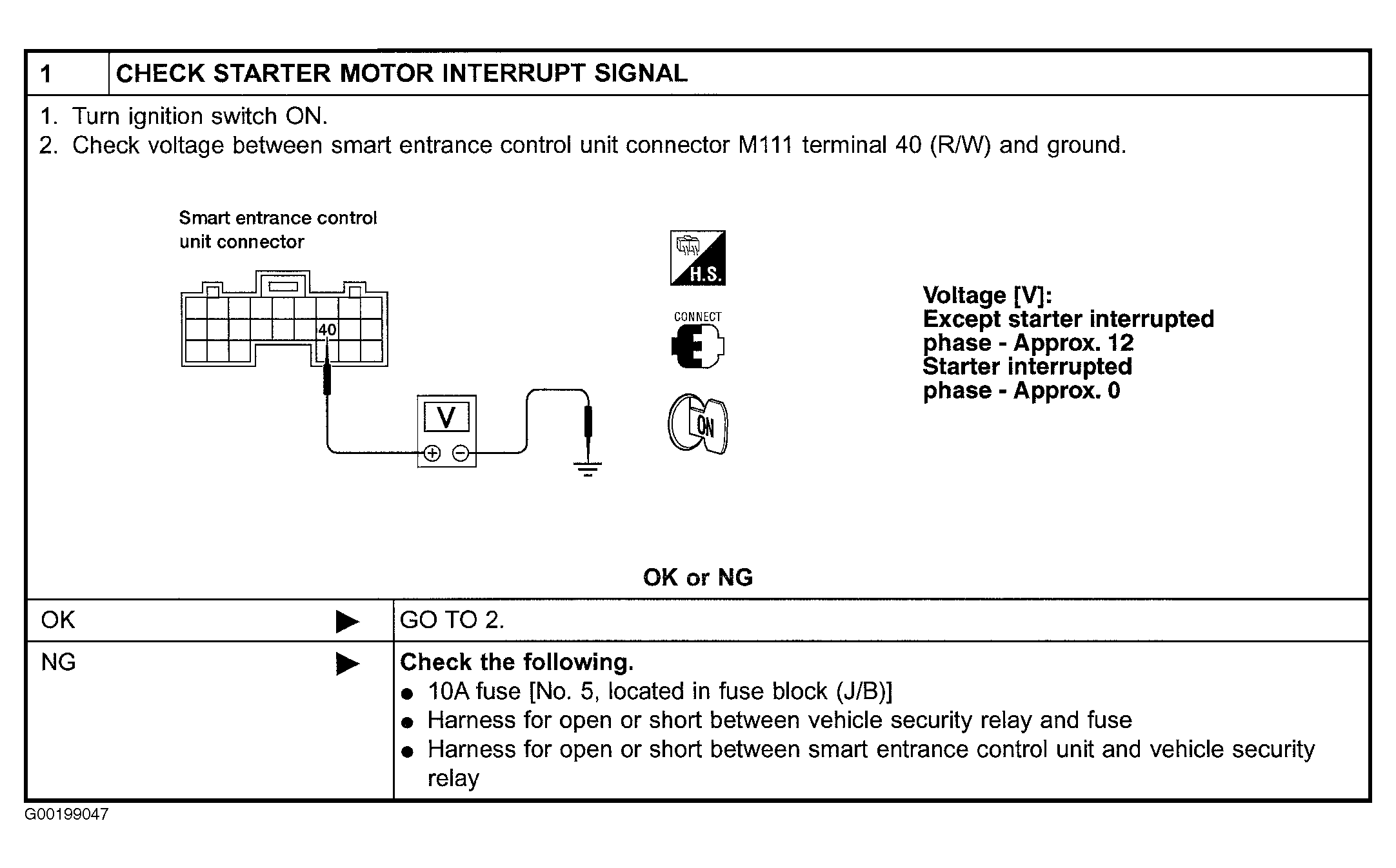

Fig 1: Identifying Starter Interrupt System Check, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

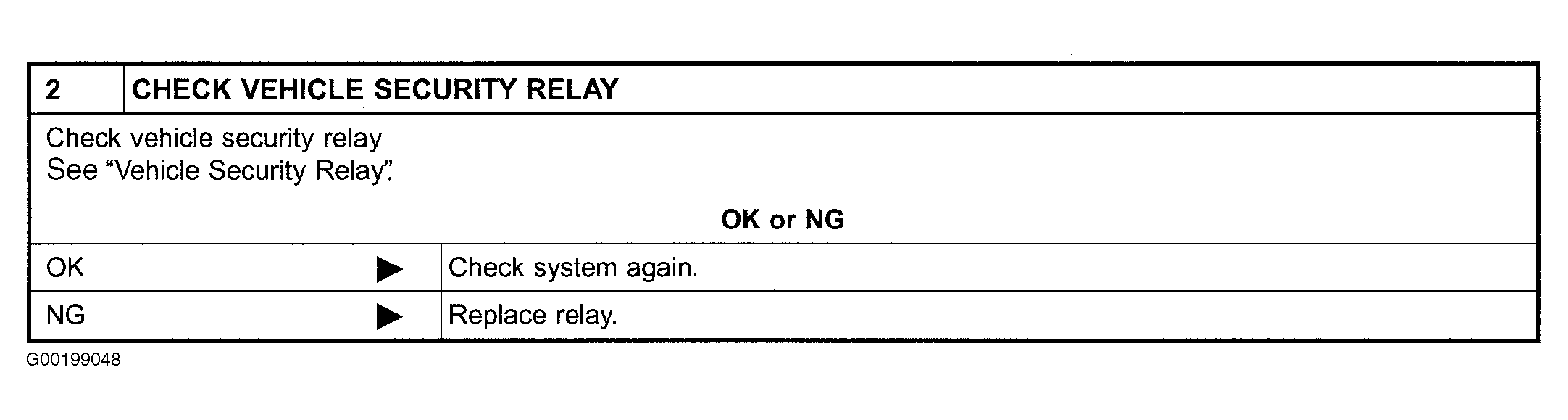

Fig 2: Identifying Starter Interrupt System Check, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
