Security Indicator Lamp Check

WARNING: This page is about a different car, the 2002 Nissan Xterra and 2002 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

For security indicator lamp check, see Fig 1 -Fig 3 .

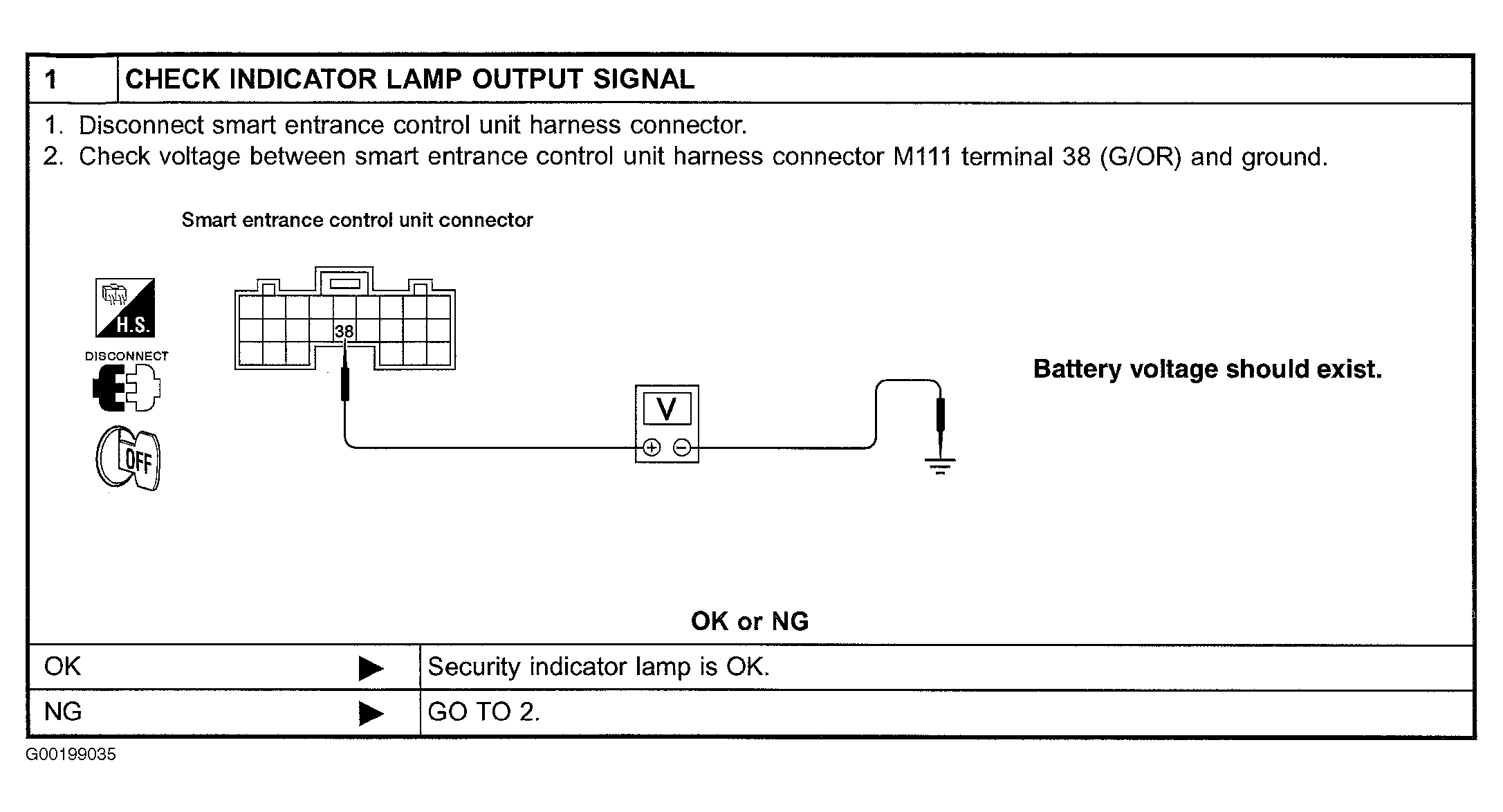

Fig 1: Identifying Security Indicator Lamp Check, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

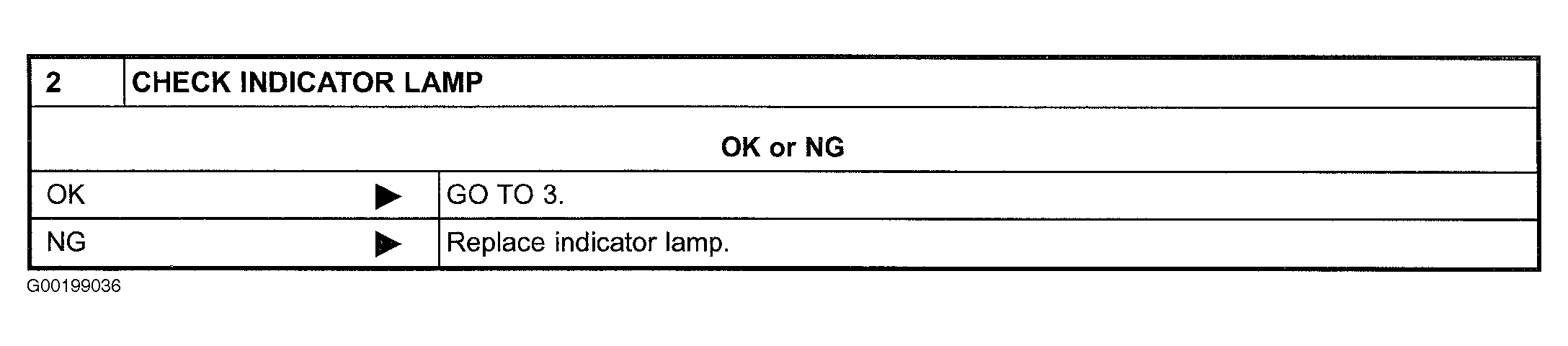

Fig 2: Identifying Security Indicator Lamp Check, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.

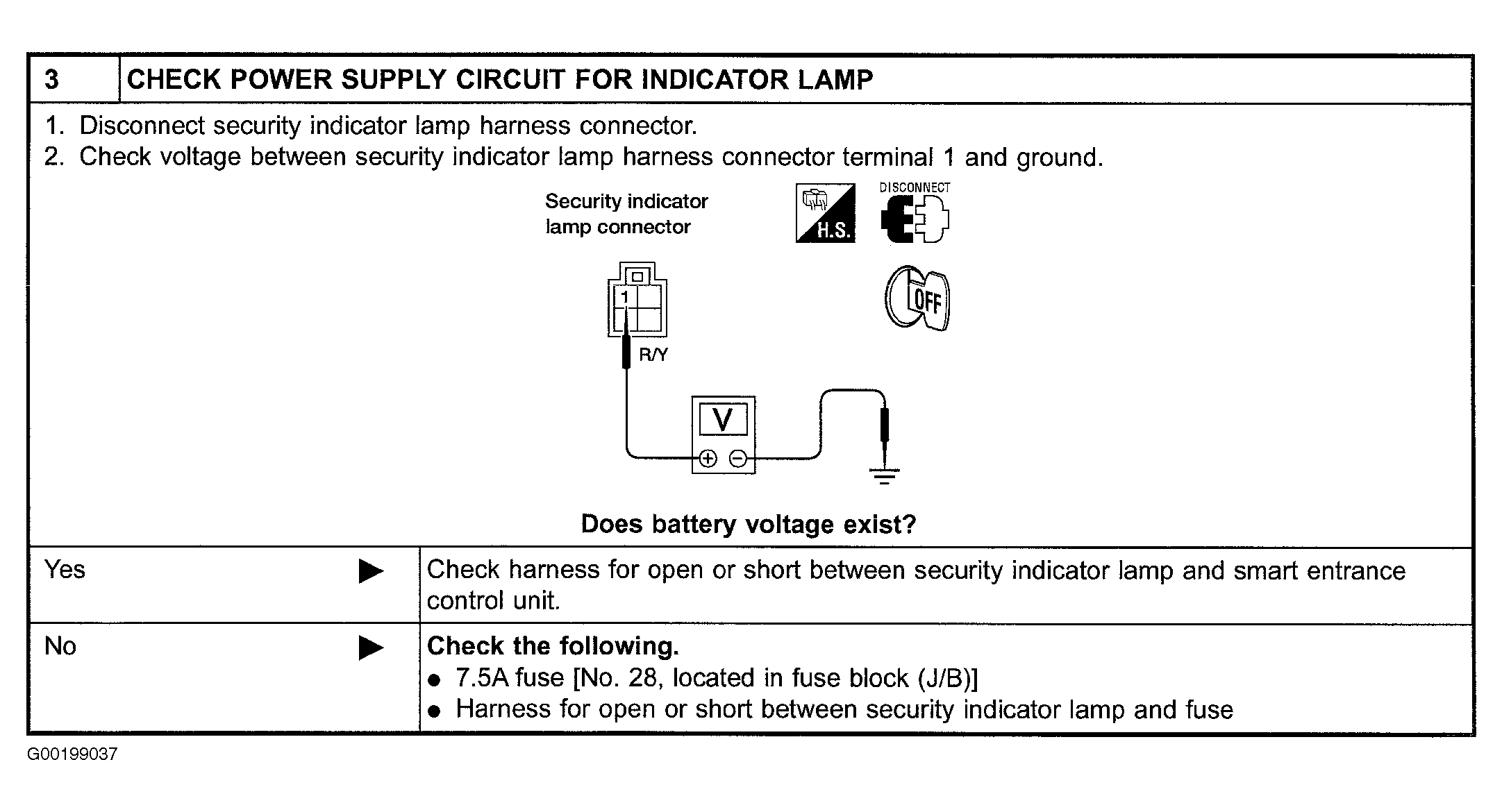

Fig 3: Identifying Security Indicator Lamp Check, Step 3

Courtesy of NISSAN MOTOR CO., U.S.A.
