Solenoid Valve

  1. To perform active test of ABS functions, select major items for each test item.
  2. For ABS solenoid valve, touch "UP", "KEEP" and "DOWN". For ABS solenoid valve (ACT), touch "UP," "ACTUATOR UP" and "ACTUATOR KEEP". Use screen monitor to check that solenoid valve operates as shown in Solenoid Valve Operation Chart. Refer to "SOLENOID VALVE OPERATION CHART ".

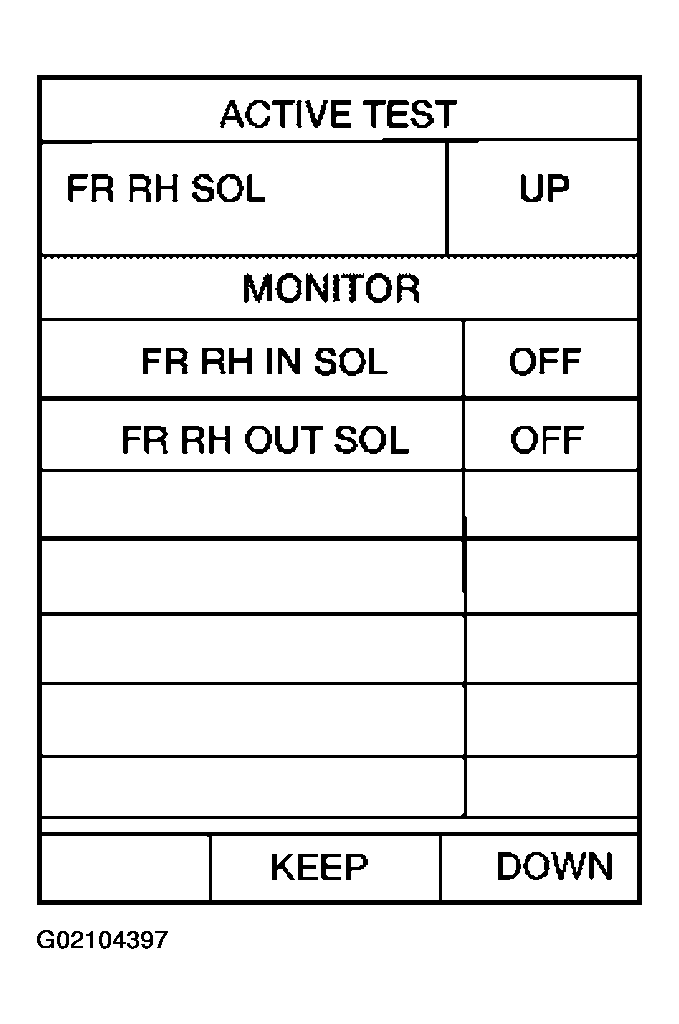

    Fig 1: Identifying CONSULT-II Display Screen - ACTIVE TEST Display
    G02104397Courtesy of NISSAN MOTOR CO., U.S.A.
